HPE DL580 Gen10 8SFF P22710-AA1 Overview
The HPE ProLiant DL580 Gen10 Server is a high-density, four-socket server with high performance, scalability and reliability, all in a 4U chassis. Supporting the latest Intel® Xeon® Scalable processors, the HPE ProLiant DL580 Gen10 Server offers greater processing power, up to 6 TB of faster memory, IO of up to sixteen PCIe 3.0 slots, plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 5. The P22710-AA1 stands for HPE Proliant DL580 G10 5218 2P 64G P408i-p 8SFF 2*1600W RPS server.
Quick Spec
Table 1 shows the quick spec.
|
Product Number |
P22710-AA1 |
|
Product Description |
HPE Proliant DL580 G10 5218 (2.3GHz, 16-core, 22M) 2P 64G P408i-p 8SFF 2*1600W RPS server |
|
Processor |
Intel Xeon 5218 (2.3GHz, 16-core, 22M) |
|
Memroy |
64G |
|
Drive Cage |
8 SFF in Box 1, no drives |
|
Fans |
12 hot plug fans, (n+1) redundant |
|
Power Supply |
2 x 1600W RPS |
Product Details
Note:

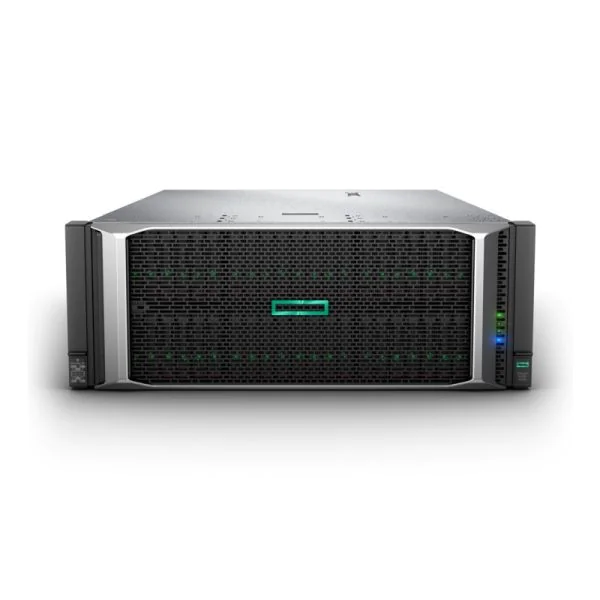

| ? | Quick removal access panel |
| ? | Box 1 (8 SFF, 6 SFF+2 NVMe or 8 NVMe (supports only 4 NVMe drives) SSD optional) |
| ? | Box 2 (8 SFF, 6 SFF+2 NVMe or 8 NVMe PCIe SSD optional) |
| ? | Box 3 (8 SFF, 6 SFF+2 NVMe or 8 NVMe PCIe SSD optional) |
| ? | Front USB 3.0 port |
| ? | Power On/Standby button and system power LED button |
| ? | Health LED |
| ? | NIC status |
| ? | UID button |
| ? | iLO Front Service Port |
| ? | Front USB 3.0 port |
| ? | Serial label pull tag |
| ? | Box 6 (8 SFF) |
| ? | Box 5 (8 SFF) |
| ? | Box 4 (8 SFF or Universal Media bay) |
| ? | Optional USB 2.0 (via Universal Media Bay) |
| ? | Optional 2 SFF HDD, requires optional Universal Media bay |
| ? | Optional front display port (via Universal Media Bay) |
| ? | Optional USB 2.0 (via Universal Media Bay) |
Note:

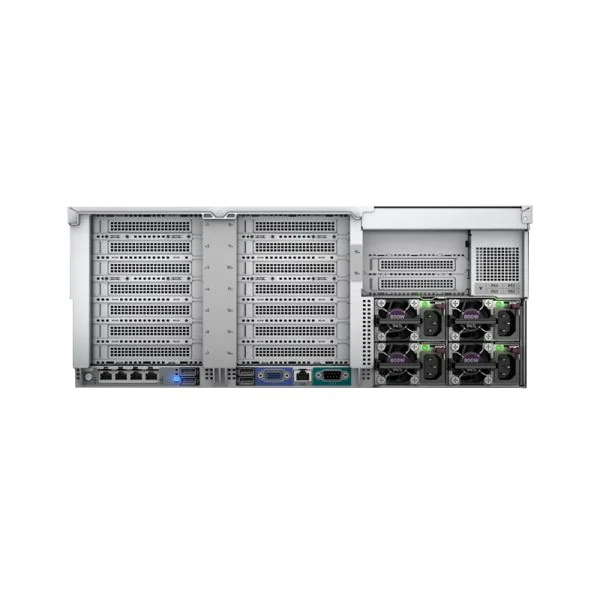

| ? | PCIe Slots (Slots 1-7 top to bottom), requires primary riser |
| ? | PCIe Slots (Slots 8-14 top to bottom), requires secondary riser (includes tertiary riser) |
| ? | PCIe Slots (Slots 15-16 top to bottom), requires tertiary riser (included with secondary riser) |
| ? | Power supply Power LED (max. 4) |
| ? | Power supply Power connection (max. 4) |
| ? | HPE Flexible Slot Power Supply, 800W PS shown (max. 4) |
| ? | Serial connector |
| ? | Dedicated iLO connector |
| ? | VGA (video) connector |
| ? | USB connectors 2.0 (2) |
| ? | USB connectors 3.0 (2) |
| ? | Unit ID LED |
| ? | FlexibleLOM ports (Port 1 on right side) |
The Options
Table 2 shows the recommended elements.
| Product number | Description |
| 872475-B21 | HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
| 872477-B21 | HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
| 870753-B21 | HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
| 872479-B21 | HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
| 868818-B21 | HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
| 875503-B21 | HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Number |
P22710-AA1 |
P21273-AA1 |
|
Product Description |
HPE Proliant DL580 G10 5218 (2.3GHz, 16-core, 22M) 2P 64G P408i-p 8SFF 2*1600W RPS server |
HPE Proliant DL580 G10 5220 (2.2GHz/18-core/125W) 2P 64G P408i-p 8SFF 4*800W RPS server |
|
Processor |
Intel Xeon 5218 (2.3GHz, 16-core, 22M) |
Intel Xeon 5220 (2.2GHz 18-core, 24.75MB, 125W) |
|
Drive Cage |
8 SFF in Box 1, no drives |
8 SFF in Box 1, no drives |
