Product Highlights
- 4×4:4 160 MHz MU-MIMO 802.11ac Wave 2
- 2.5 Gbps* dual-radio aggregate frame rate
- 24×7 real-time WIDS/WIPS and spectrum analytics via dedicated 3rd radio
- Integrated BLE Beacon and scanning radio
- Full-time WiFi location tracking via dedicated 3rd radio
- Integrated enterprise security and guest access
- Application-aware traffic shaping
- Optimized for voice and video
- Self-configuring, plug-and-play deployment
- Flexible omni- and directional antenna options
- Sleek, low-profile design blends into indoor and outdoor environments
Specifications
Radios
2.4 GHz 802.11b/g/n client access radio
5 GHz 802.11a/n/ac client access radio
2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio
2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and scanning support
Concurrent operations of all four radios
Supported frequency bands (country-specific restrictions apply):
2.412-2.484 GHz
5.150-5.250 GHz (UNII-1)
5.250-5.350 GHZ (UNII-2)
5.470-5.600, 5.660-5.725 GHz (UNII-2e)
5.725 -5.825 GHz (UNII-3)
802.11ac Wave 2 and 802.11n Capabilities
4 x 4 multiple input, multiple output (MIMO) with four spatial streams
SU-MIMO and MU-MIMO support
Maximal ratio combining (MRC) & beamforming
20 and 40 MHz channels (802.11n), 20, 40, 80, 160, 80 + 80 MHz channels (802.11ac)
Up to 256-QAM on both 2.4 GHz & 5 GHz bands
Packet aggregation
Power
Power over Ethernet: 37 – 57 V (802.3at required with functionality-restricted 802.3af
mode supported)
Power consumption: 21W max (802.3at)
Power over Ethernet injector sold separately
Mounting

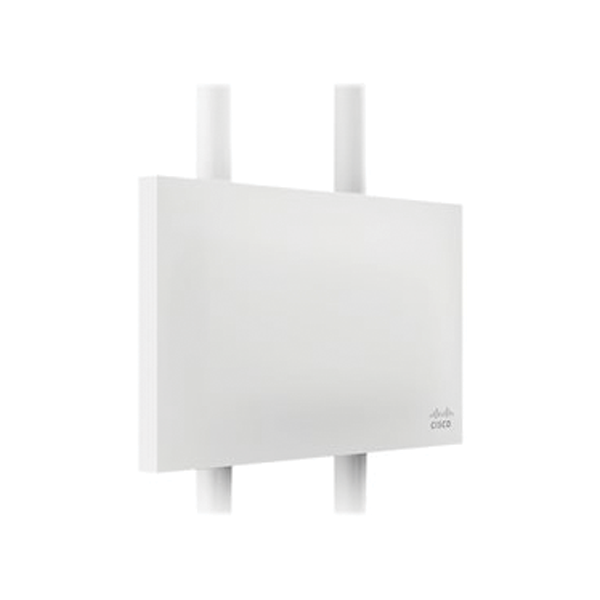

Mounts to walls and vertical poles.
Mounting hardware included
Physical Security
Security screw included
Concealed mount plate
Environment
Operating temperature: -40 °F to 131 °F (-40 °C to 55 °C)
Humidity: 5 to 95% non-condensing
IP67 environmental rating
Physical Dimensions
28.6 cm x 17.6 cm x 18.5 cm including mounting bracket
Weight: 3.8 lbs. (1.7 kg)
Interfaces
1x 100/1000/2.5G BASE-T Ethernet & 1x 10/100/1000 BASE-T Ethernet (RJ45)
Four external N-type female antenna connector
Security
Integrated Layer 7 firewall with mobile device policy management
Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
Flexible guest access with device isolation
VLAN tagging (802.1q) and tunneling with IPsec VPN
PCI compliance reporting
WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
TKIP and AES encryption
Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
Cisco ISE integration for Guest access and BYOD Posturing
Quality of Service
Advanced Power Save (U-APSD)
WMM Access Categories with DSCP and 802.1p support
Layer 7 application traffic identification and shaping
Mobility
PMK, OKC, & 802.11r for fast Layer 2 roaming
Distributed or centralized layer 3 roaming
Analytics
Embedded location analytics reporting and device tracking
Global L7 traffic analytics reporting per network, per device, & per application
