Features
- Managed via Cisco Meraki Dashboard
- Automatic Firmware upgrades
- WAN Link Balancing
- Automatic WAN Failover
- SD-WAN over Meraki AutoVPN
- L3/L7 Stateful Firewall
- Geo-based firewall rules
- 1:1 and 1:Many NAT
- Configurable VLANs / DHCP support
- Static Routing
- Client VPN endpoint
- Meraki AutoVPN and L2TP/IPSec VPN endpoint
- Active Directory integration
- Content Filtering
- Malware Protection (AMP) w/ optional Threat Grid integration
- IDS/IPS protection
- Custom Traffic Shaping
- Historical Client Usage statistics
- Netflow support
- Syslog integration
- Remote Packet Capture tools
Hardware Features
- Dual WAN uplinks
- Built-in 802.11ac Wireless capability (Wireless models only)
- Built-in PoE+ capabilities (MX65 only)
Specification

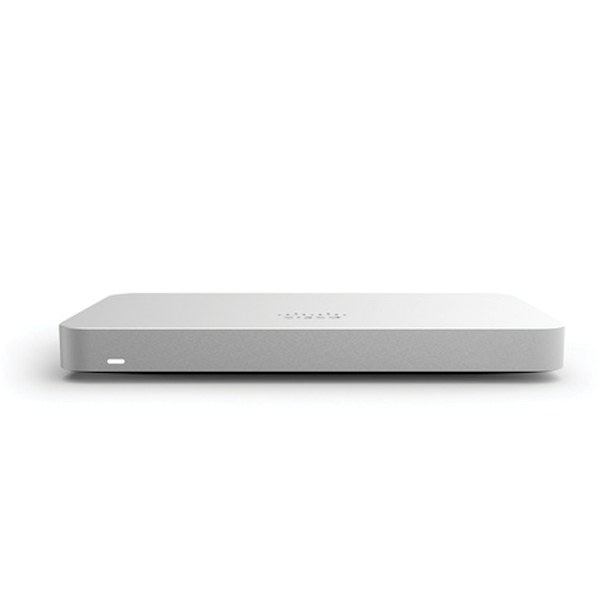

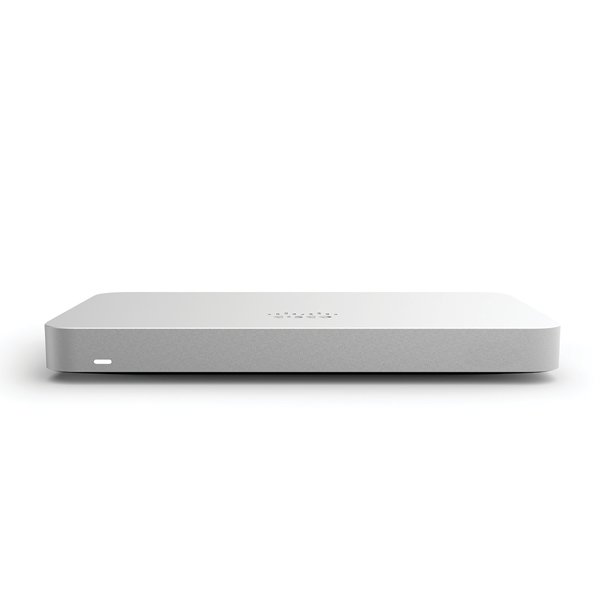

Model Name/Number: MX65-HW
Brand: Cisco Meraki
Usage/Application: Firewall
Dimension: 10.0″ x 5.2″ x 1″ (256mm x 132mm x 25mm)
Recommended Clients: 50
Stateful Firewall Throughput: 250 Mbps
Advanced Security Throughput: 200 Mbps
Maximum VPN Throughput: 100 Mbps
Maximum Concurrent VPN Tunnels: 50
WAN Interfaces Dedicated: 2 x GbE RJ45, 1 x USB (cellular failover)
Mounting: Desktop or Wall mount
LAN Interfaces Fixed: 10 x GbE RJ45 (2 x PoE+)
Weight: 1.98 lb (0.9 kg)
Power Supply: 90W DC (included)
Power Load: 6W / 72W (idle/max)
Operating Temperature: 32 DegreeF to 104 DegreeF
Humidity: 5% to 95%
