C3945-VSEC/K9 Overview

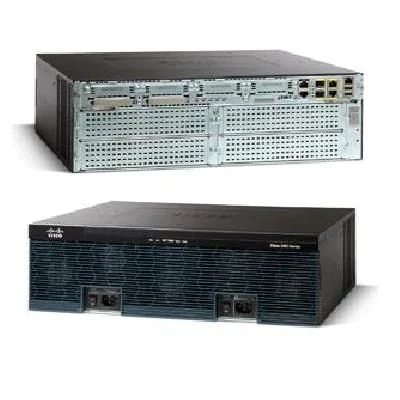

C3945-VSEC/K9 is the Cisco 3900 Router ISR G2 Voice Security Bundle. Its appearance is similar with CISCO3945/K9, but it’s bundled with Voice Sec. Bundle, PVDM3-64, UC and SEC License PAK.
Quick Specs
Table 1 shows the Quick Specs of the C3945-VSEC/K9.
| Product Code | C3945-VSEC/K9 |
| Bundle | Cisco 3945 Voice Sec. Bundle, PVDM3-64, UC and SEC License PAK |
| Services Performance Engine module | w/SPE 150 |
| Rack Units | 3U |
| Interfaces | 3 integrated 10/100/1000 Ethernet ports with 2 ports capable of RJ-45 or SFP connectivity |
| Expansion Slot(s) | 4 service module slots
1 Internal Services Module slot 4 onboard digital signal processor (DSP) slots 4 Enhanced High-Speed WAN Interface Card (EHWIC) slots |
| RAM | 1 GB (installed) / 2 GB (max) |
| Flash Memory | 256 MB (installed) / 8 GB (max) |
| Dimensions | 47.6 cm x 43.8 cm x 13.3 cm |

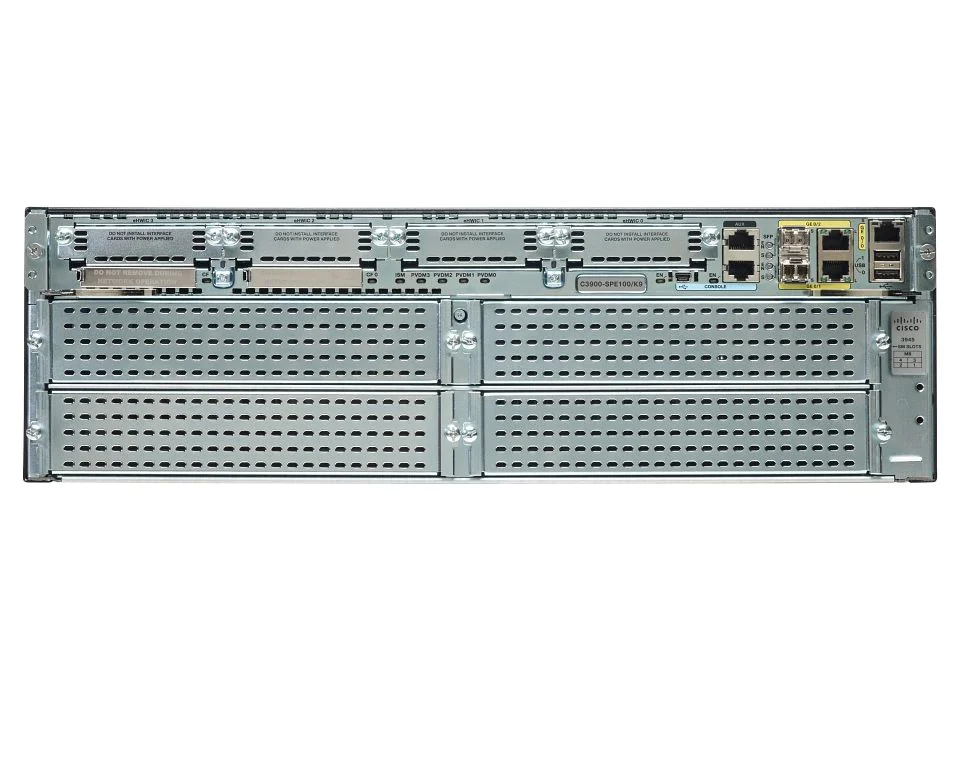

Product Details
Note:
| ① | ② | ③ |
| On/Off switch | Power connector | LEDs area |
Note:
| ① | Compact flash 0 and 1 (0, right) | ⑦ | 10/100/1000 Ethernet port GE 0/1 and GE 0/2 (GE 0/1, down) |
| ② | EHWIC 0,1,2 and 3 (0, far right) | ⑧ | 10/100/1000 Ethernet port GE 0/0 |
| ③ | USB serial port | ⑨ | USB 0 and USB 1 (1,top) |
| ④ | RJ-45 serial console port | ⑩ | Ground |
| ⑤ | AUX port | Service module slots | |
| ⑥ | SFP 1 and SFP 2 (2, top) |
Table 2. Voice Security Bundle Features Table
| Authentication and Encryption Features |
|
| Authentication and Encryption Algorithm |
|
| Signaling Authentication and Encryption Features |
|
| Protocol Support |
|
| Module Support |
|
| Codec Support |
|
Modularity Features
Table 3 shows modules for this router.
| Models | Description |
| C3900-SPE150/K9 | Cisco Services Performance Engine 150 for Cisco 3945 ISR. (It’s a configured item in the CISCO3945/K9.) |
| SM-ES3G-16-P | Enhanced EtherSwitch Service Module, L2/L3 switching, 16* 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology |
| SM-ES3G-24-P | Enhanced EtherSwitch Service Module, L2/L3 switching, 24 * 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology |
| VWIC3-2MFT-G703 | Cisco Voice/WAN Card VWIC3-2MFT-G703 |
| HWIC-2T | 2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card |
| EHWIC-1GE-SFP-CU | Cisco 1900, 2900, 3900 Router EHWIC WAN Card EHWIC-1GE-SFP-CU |
| EHWIC-4ESG | Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers |
| ISM-SRE-300-K9 | Internal Services Module (ISM) with Services Ready Engine |
| MEM-CF-256U1GB | 256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900 |
| MEM-CF-256U2GB | 256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900 |
| MEM-CF-256U512MB | 256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR |
| MEM-CF-256U4GB | 256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900 |
Compare to Similar Routers
Table 4 shows the comparison of CISCO3945/k9 and C3945-VSEC/K9.
| Model | CISCO3945/k9 | C3945-VSEC/K9 |
| Bundle | N/A | Cisco 3945 Voice Sec. Bundle, PVDM3-64, UC and SEC License PAK |
| SPE | w/SPE 150 | w/SPE 150 |
| Interface | 3GE | 3GE |
| EHWIC slots | 4 | 4 |
| SM slots | 4 | 4 |
| ISM slots | 1 | 1 |
| DSP | 4 | 4 |
| SFP | 2 | 2 |
| Rack Unit | 3U | 3U |
Get more information
C3945-VSEC/K9 Specification
C3945-VSEC/K9 Specifications |
|
|
Device Type |
Router |
|
Form Factor |
Desktop – modular – 3U |
|
Bundle |
Cisco 3945 Voice Sec. Bundle, PVDM3-64, UC and SEC License PAK |
|
Connectivity Technology |
Wired |
|
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
|
Capacity |
Cisco Unified Communications Manager Express sessions : 350 |
|
Network / Transport Protocol |
IPSec, PPPoE, L2TPv3 |
|
Routing Protocol |
OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
|
Remote Management Protocol |
SNMP, RMON |
|
Encryption Algorithm |
SSL |
|
Features |
Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) |
|
Compliant Standards |
IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag |
|
DRAM Memory |
1 GB (installed) / 2 GB (max) |
|
Flash Memory |
256 MB (installed) / 8 GB (max) |
|
LED Status Lights Indicators |
Link activity, power |
|
Communications |
|
|
Type |
Voice / fax module |
|
Digital Ports Qty |
64 |
|
IP Telephony |
|
|
Voice Codecs |
G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726 |
|
Connectivity Slots |
|
|
Router Interfaces |
3 x 10Base-T/100Base-TX/1000Base-T – RJ-45 |
|
Expansion Slots Total (Free) |
4 ( 4 ) x EHWIC |
|
Power Supply |
|
|
Power Device |
Power supply – internal |
|
Voltage Required |
AC 120/230 V ( 50/60 Hz ) |
|
Dimensions / Weight / Miscellaneous |
|
|
Width |
43.8 cm |
|
Depth |
47.6 cm |
|
Height |
13.3 cm |
|
Weight |
17.7 kg |
|
Compliant Standards |
CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, CS-03, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438 |
|
System Software |
|
|
IOS Software Included |
Cisco IOS Security |
|
Software Included |
Cisco IOS Unified Communications |
