C3945E-VSEC-SRE/K9 Overview
C3945E-VSEC-SRE/K9 is the Cisco 3945E router with VSEC SRE Bundle, including SRE 900, PVDM3-64, UC License and Security License.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | C3945E-VSEC-SRE/K9 |
| Bundle | SRE 900, PVDM3-64, UC License and Security License |
| Services Performance Engine module | w/SPE 250 |
| Rack Units | 3U |
| Interfaces | WAN : 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45
Management : 1 x console – RJ-45 Management : 1 x console – mini-USB Type B Serial : 1 x auxiliary – RJ-45 USB : 3 x 4 pin USB Type A 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 2 x SFP (mini-GBIC) |
| Expansion Slot(s) | 3 (total) / 3 (free) x EHWIC
3 (total) / 2 (free) x PVDM 2 (total) / 1 (free) x CompactFlash Card 4 (total) / 3 (free) x service module (SM) |
| RAM | 1 GB (installed) / 2 GB (max) |
| Flash Memory | 256 MB (installed) / 8 GB (max) |
| Dimensions | 18.7 in x 17.2 in x 5.2 in |
Product Details

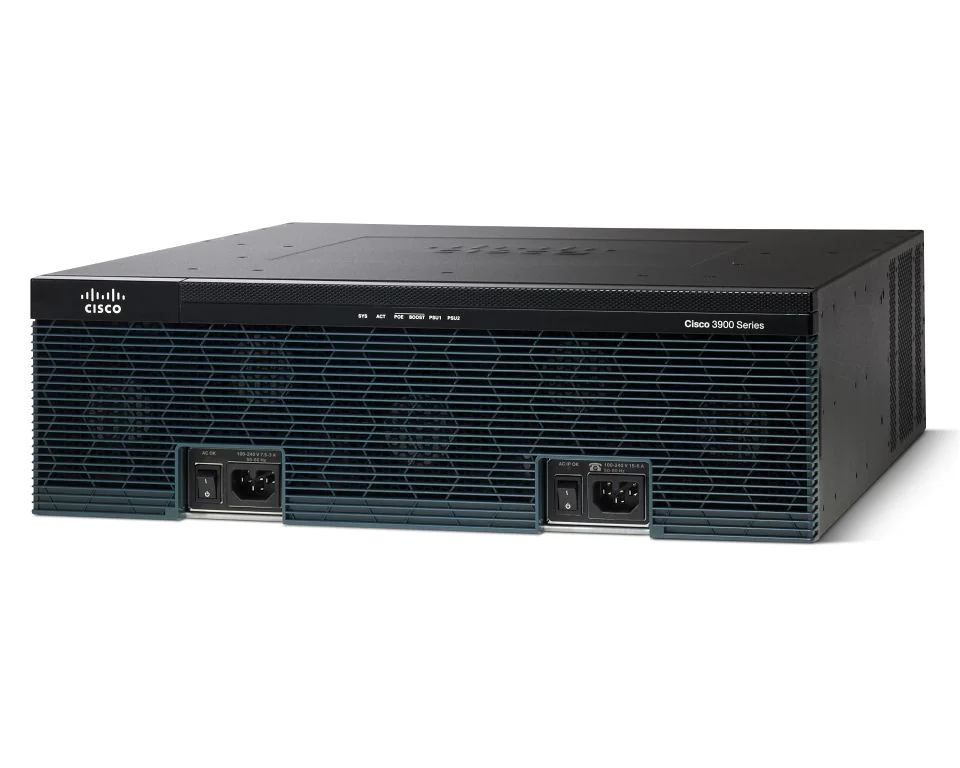

Note:
| ① | ② | ③ |
| On/Off switch | Power connector | LEDs area |

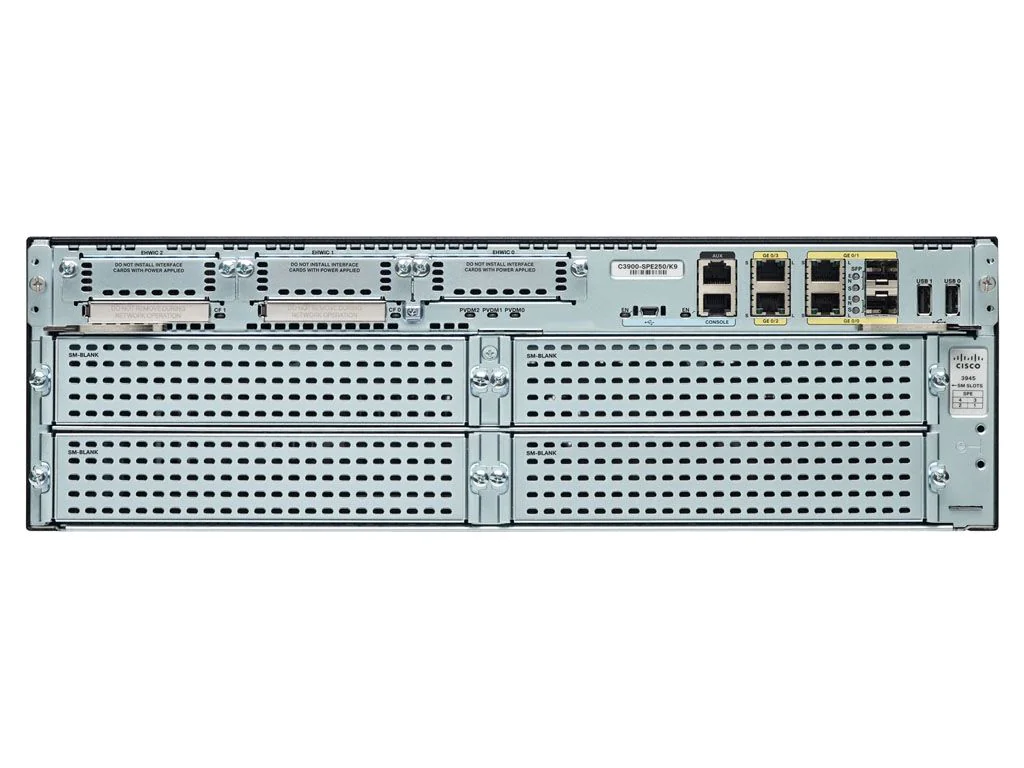

Note:
| ① | EHWIC 0,1, and 2 (0, far right) | ⑦ | SFP 1 and SFP 2 (1, Top) |
| ② | USB serial port | ⑧ | USB 0 and USB 1 (1, Left) |
| ③ | AUX port | ⑨ | Ground |
| ④ | RJ-45 serial console port | ⑩ | Service module slots |
| ⑤ | 10/100/1000 Ethernet ports (GE 0/3, Top; GE 0/2, Bottom) | Compact flash 0 and 1 (0, right) | |
| ⑥ | 10/100/1000 Ethernet ports (GE 0/1, Top; GE 0/0, Bottom) |
Table 2. Summary of Features and Benefits of Cisco Services-Ready Engine
| Key Features | Key Benefits |
| • Ability to host Cisco, third-party, and custom applications
• Small physical, energy, and carbon footprint • High-performance, high-capacity hardware • On-demand remote application provisioning • Centralized management and troubleshooting |
• Consolidate and simplify branch-office infrastructure into one device
• Save on energy bills, hardware support contracts, and onsite visits • Improve versatility and flexibility of branch-office infrastructure • Quickly and cost-effectively adapt branch-office services and applications to evolving business needs |
Table 3 shows Cisco SRE Module Product Specifications. C3945E-VSEC-SRE/K9 supports SRE 900.
| Feature | Cisco SRE 300 ISM | Cisco SRE 700 and SRE 710 SMs | Cisco SRE 900 and SRE 910 SMs |
| Product part number | ISM-SRE-300-K9 | SM-SRE-700-K9
SM-SRE-710-K9 |
SM-SRE-900-K9
SM-SRE-910-K9 |
| Form factor | ISM | SM | SM |
| CPU | Genuine Intel Processor, 1.06 GHz | Intel Core2 Solo, 1.86 GHz | Intel Core2 Duo, 1.86 GHz |
| DRAM | 512 MB | 4 GB | 4 GB (default) or 8 GB |
| Compact Flash memory | 4-GB internal USB flash-memory module | 2-GB internal USB flash-memory module | 2-GB internal USB flash-memory module |
| Hard disk | None | One 500-GB SATA
5400 rpm (SRE 700) 7200 rpm (SRE 710) |
Two 500-GB SATA
(1 TB in non-RAID mode) 5400 rpm (SRE 900) 7200 rpm (SRE 910) |
| Hot-swappable hard disk drive (HDD) | None | None | Yes |
| RAID support | None | None | RAID 0 or 1 (application dependent) |
| Internal network interfaces | Gigabit Ethernet connectivity to router backplane | Gigabit Ethernet connectivity to router backplane | Gigabit Ethernet connectivity to router backplane |
| External network interfaces | None | One USB connector
One RJ-45 Gigabit Ethernet connector |
One USB connector
One RJ-45 Gigabit Ethernet connector |
| Router platforms | Cisco 1941, 2901, 2911, 2921, 2951, 3925, and 3945 Integrated Services Routers | Cisco 2911, 2921, 2951, 3925, 3925E, 3945, and 3945E Integrated Services Routers | Cisco 2911, 2921, 2951, 3925, 3925E, 3945, and 3945E Integrated Services Routers |
| Cisco IOS Software (on router) | Release 15.0(1)M | Release 15.1(4)M | Release 15.1(4)M |
| Embedded hardware-based cryptography acceleration | No | No | Yes |
| Supported Applications | |||
| Applications | • Cisco Unity Express
• Cisco Application Extension Platform (AXP) • Cisco Wireless LAN Controller (WLC) |
• Cisco Unity Express
• Cisco UCS Express • Cisco AXP • Cisco WLC • Cisco Wide Area Application Services (WAAS) • Infoblox Core Network Services • Cisco Prime Network Analysis Module (NAM) • Cisco Unified SIP Proxy • Cisco Unified Messaging Gateway (UMG) • Cisco Survivable Remote Site Voicemail (SRSV) • Sagemcom Fax over IP • Tiani Spirit Medical Data Exchange Solution • Orion Health Rhapsody Connect • NetScout nGenius Integrated Agent • BlueCat Adonis DNS/DHCP and Proteus IPAM • LogLogic MX-Virtual Appliance • SecureLogix Voice Policy Firewall • Open Text RightFax Fax over IP • Visual Network Systems OmniPoint Element • Uplogix Local Management Platform • IndustryWeapon CommandCenterHD |
• Cisco Unity Express
• Cisco UCS Express • Cisco AXP • Cisco WLC • Cisco WAAS • Cisco Video Surveillance • Infoblox Core Network Services • Cisco Prime Network Analysis Module (NAM) • Cisco Unified SIP Proxy • Cisco Unified Messaging Gateway (UMG) • Cisco Survivable Remote Site Voicemail (SRSV) • Sagemcom Fax over IP • Tiani Spirit Medical Data Exchange Solution • Orion Health Rhapsody Connect • NetScout nGenius Integrated Agent • BlueCat Adonis DNS/DHCP and Proteus IPAM • LogLogic MX-Virtual Appliance • SecureLogix Voice Policy Firewall • Open Text RightFax Fax over IP • Visual Network Systems OmniPoint Element • Uplogix Local Management Platform • Industry Weapon CommandCenterHD |
Compare to Similar Items
Table 4 shows the comparison.
| Model | C3945E-VSEC-SRE/K9 | CISCO3945E/k9 |
| SPE | w/SPE 250 | w/SPE 250 |
| Interface | 4 integrated 10/100/1000 Ethernet ports with 2 SFP ports | 4 integrated 10/100/1000 Ethernet ports with 2 SFP ports |
| Rack Unit | 3U | 3U |
| Bundle | Cisco 3945E SRE Bundle, SRE 900, PVDM3-64, UC, SEC Lic. PAK | None |
Get more information
C3945E-VSEC-SRE/K9 Specification
C3945E-VSEC-SRE/K9 Specification |
|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | C3945E-VSEC-SRE/K9 |
| Product Type | Router |
| Form Factor | Desktop – modular – 3U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Cisco Unified Communications Manager Express sessions : 450
Cisco Unified SRST sessions : 1500 |
| Network / Transport Protocol | IPSec, PPPoE, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
| Remote Management Protocol | SNMP, RMON |
| Encryption Algorithm | SSL |
| Features | Firewall protection, hardware encryption, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag |
| DRAM Memory | 1 GB (installed) / 2 GB (max) |
| Flash Memory | 256 MB (installed) / 8 GB (max) |
| Hard Drive | 1 TB |
| LED Status Lights Indicators | Link activity, power |
| Communications | |
|---|---|
| Type | Voice / fax module |
| Digital Ports Qty | 64 |
| Protocols & Specifications | ITU G.168 |
| IP Telephony | |
| Voice Codecs | G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726 |
| Connectivity Slots | |
| Router Interfaces | WAN : 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45
Management : 1 x console – RJ-45 Management : 1 x console – mini-USB Type B Serial : 1 x auxiliary – RJ-45 USB : 3 x 4 pin USB Type A 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 2 x SFP (mini-GBIC) |
| Expansion Slot(s) | 3 (total) / 3 (free) x EHWIC
3 (total) / 2 (free) x PVDM 2 (total) / 1 (free) x CompactFlash Card 4 (total) / 3 (free) x service module (SM) |
| Power Supply | |
| Power Device | Power supply – internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Dimensions / Weight / Miscellaneous | |
| Approximate Width | 18.7 in |
| Depth | 17.2 in |
| Height | 5.2 in |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438 |
| System software | |
| Software Included | Cisco IOS Unified Communications, Cisco IOS Security |
