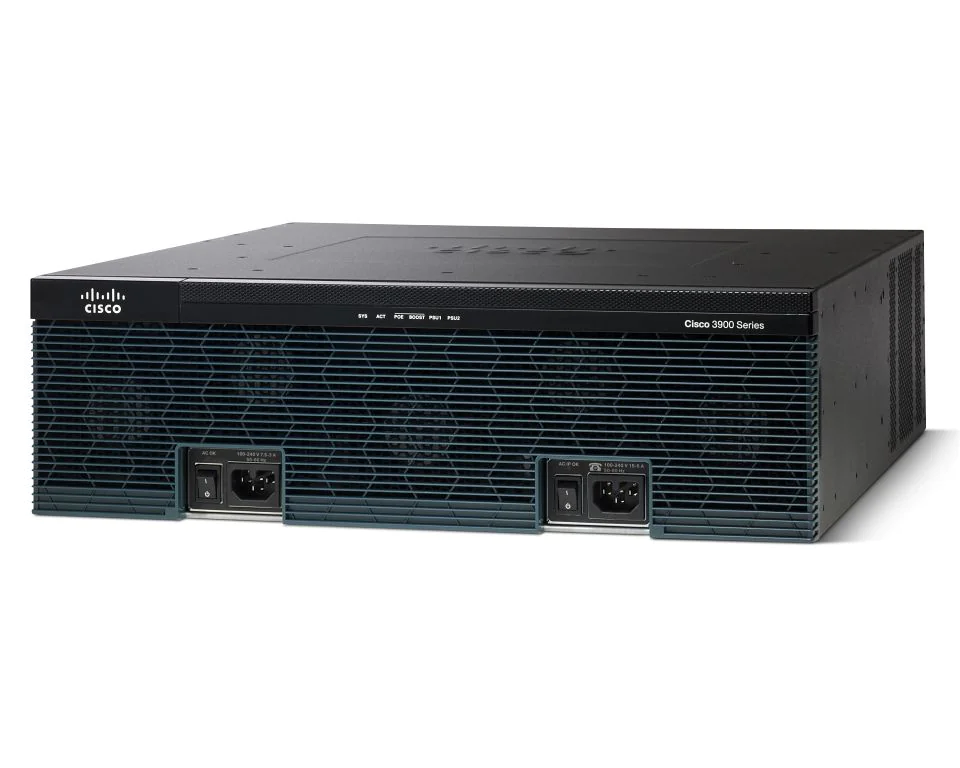

CISCO3945E-V/K9 Overview
CISCO3945E-V/K9 is the Cisco 3945E router with Voice Bundle, including PVDM3-64, and UC License PAK.
Quick Specs
Table 1 shows the Quick Specs of the CISCO3945E-V/K9.
| Product Code | CISCO3945E-V/K9 |
| Bundle | Voice Bundle, PVDM3-64, UC License PAK. |
| Services Performance Engine module | w/SPE 250 |
| Rack Units | 3U |
| Interfaces | 4 integrated 10/100/1000 Ethernet ports with 2 SFP ports |
| Expansion Slot(s) | 4 service module slots
3 Enhanced High-Speed WAN Interface Card slots 3 onboard digital signal processor (DSP) slots |
| RAM | 1 GB (installed) / 2 GB (max) |
| Flash Memory | 256 MB (installed) / 8 GB (max) |
| Dimensions | 18.7 x 17.2 x 5.7 in |
Product Details
Note:
| ① | ② | ③ |
| On/Off switch | Power connector | LEDs area |
Note:
| ① | EHWIC 0,1, and 2 (0, far right) | ⑦ | SFP 1 and SFP 2 (1, Top) |
| ② | USB serial port | ⑧ | USB 0 and USB 1 (1, Left) |
| ③ | AUX port | ⑨ | Ground |
| ④ | RJ-45 serial console port | ⑩ | Service module slots |
| ⑤ | 10/100/1000 Ethernet ports (GE 0/3, Top; GE 0/2, Bottom) | Compact flash 0 and 1 (0, right) | |
| ⑥ | 10/100/1000 Ethernet ports (GE 0/1, Top; GE 0/0, Bottom) |
Compare to Similar Routers
Table 2 shows the comparison between CISCO3945E/k9 and CISCO3945E-V/k9.
| Model | CISCO3945E/k9 | CISCO3945E-V/k9 |
| Bundle | N/A | Voice Bundle, PVDM3-64, UC License PAK |
| SPE | w/SPE 250 | w/SPE 250 |
| Interface | 4GE | 4GE |
| EHWIC slots | 3 | 3 |
| SM slots | 4 | 4 |
| ISM slots | 0 | 0 |
| DSP | 3 | 3 |
| SFP | 2 | 2 |
| Rack Unit | 3U | 3U |
Get more information
CISCO3945E-V/K9 Specification
| CISCO3945E-V/K9 Data Sheet | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CISCO3945E-V/K9 |
| Product Type | Router |
| Form Factor | Desktop – modular – 3U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Cisco Unified Communications Manager Express sessions : 450 Cisco Unified SRST sessions : 1500 |
| Network / Transport Protocol | IPSec, PPPoE, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
| Remote Management Protocol | SNMP, RMON |
| Features | Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag |
| DRAM Memory | 1 GB (installed) / 2 GB (max) |
| Flash Memory | 256 MB (installed) / 8 GB (max) |
| LED Status Lights Indicators | Link activity, power |
| Communications | |
| Type | Voice / fax module |
| Digital Ports Qty | 64 |
| Protocols & Specifications | ITU G.168 |
| IP Telephony | |
| Voice Codecs | G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726 |
| Connectivity Slots | |
| Router Interfaces | WAN : 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 Management : 1 x console – RJ-45 Management : 1 x console – mini-USB Type B Serial : 1 x auxiliary – RJ-45 USB : 2 x 4 pin USB Type A 2 x SFP (mini-GBIC) |
| Expansion Slot(s) | 3 (total) / 3 (free) x EHWIC 3 (total) / 2 (free) x PVDM 2 (total) / 1 (free) x CompactFlash Card 4 (total) / 4 (free) x service module (SM) |
| Power Supply | |
| Power Device | Power supply – internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Dimensions / Weight / Miscellaneous | |
| Approximate Width | 18.7 in |
| Depth | 17.2 in |
| Height | 5.2 in |
| Weight | 39 lbs |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438, NEBS |
| System software | |
| Software Included | Cisco IOS Unified Communications |
