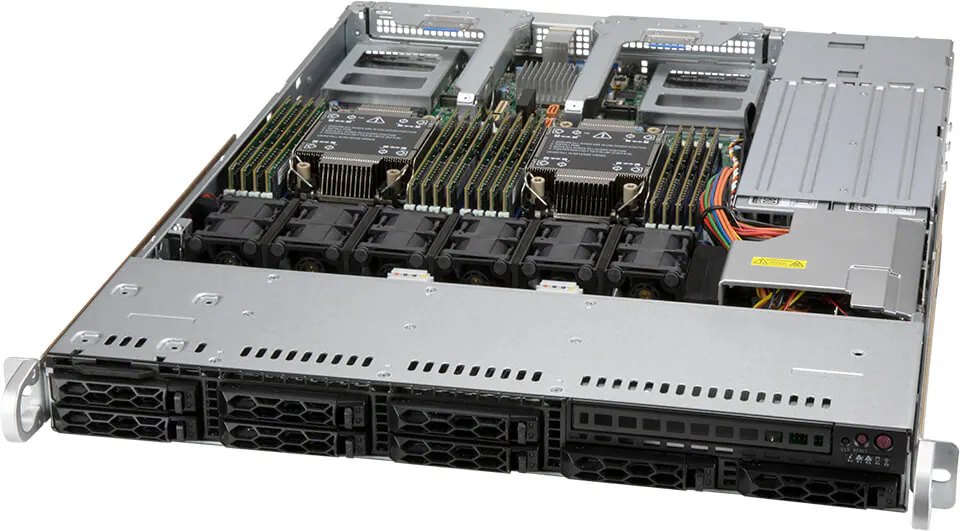

CloudDC SuperServer SYS-120C-TR (Complete System Only )

Product SKUs
SuperServer SYS-120C-TR Standard version with PWS-860P-1R2 (Platinum Level)
SuperServer SYS-120C-TR-EU European version with PWS-861A-1R (Titanium Level)
Motherboard
Super X12DDW-A6
Processor
CPU
Dual Socket P4 (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Core Count
Up to 40C/80T; Up to 60MB Cache per CPU
Note
Supports up to 270W TDP CPUs (Air Cooled)*
*Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
Up to 2 single-width GPU(s)
Supported GPU
NVIDIA PCIe: L4, A2
Intel PCIe: Intel Data Center GPU Flex 140
View GPU Options
System Memory
Memory
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel® Optane™ persistent memory 200 series
View Memory Options
Memory Voltage
1.2V
On-Board Devices
SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
Intel® C621A
Network Connectivity
Via Slim-AIOM
View AIOM Options
View AOC Options
Input / Output
LAN
1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
2 USB 3.0 port(s) (rear)
Video
1 VGA port(s)
Serial
1 COM port(s) (Rear)
DOM
1 SuperDOM (Disk on Module) port(s)
TPM
1 TPM header
System BIOS
BIOS Type
AMI 32MB SPI FLASH ROM
Management
Software
SuperCloud Composer
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power configurations
ACPI/APM Power Management
Security
Hardware
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
System Lockdown
PC Health Monitoring
FAN
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
CPU
Monitors for CPU Cores, Chipset Voltages, Memory.
8 Phase-switching voltage regulator
Chassis
Form Factor
1U Rackmount
Model
CSE-LB13TS-R860AWP
Dimensions and Weight
Height
1.7″ (43 mm)
Width
17.2″ (437 mm)
Depth
23.5″ (597 mm)
Package
7.8″ (H) x 23.8″ (W) x 32.4″ (D)
Weight
Gross Weight: 40 lbs (18.1 kg)
Net Weight: 25 lbs (11.3 kg)
Available Color
Black front & silver body

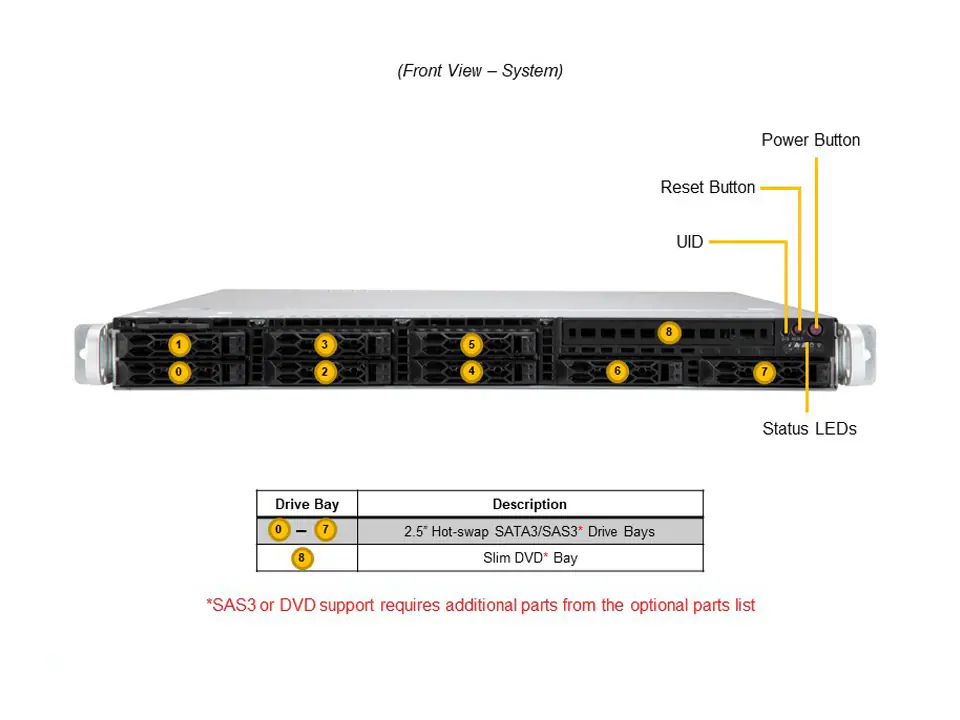

Front Panel
LED
Drive activity
Network activity
Power status
Universal Information
Buttons
Power On/Off
Reset button
Unit Identifier (UID)
Expansion Slots
PCI-Express (PCIe) Configuration
Default
2 PCIe 4.0 x16 FHHL slot(s)
Option A
2 PCIe 4.0 x16 AIOM slot(s) (OCP 3.0 compatible)
View AOC Options

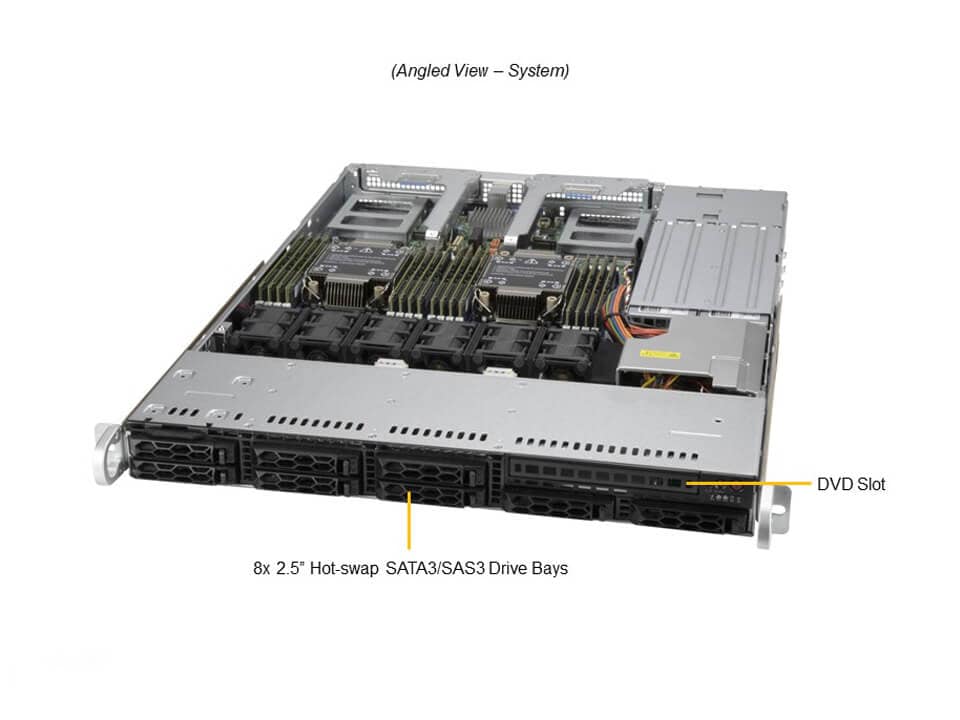

Drive Bays / Storage
Drive Bays Configuration
Default: Total 8 bay(s)
8 front hot-swap 2.5″ SAS*/SATA drive bay(s)
(*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
View Drive Options
M.2
2 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280(default); VROC required for RAID)
View M.2 Options
Peripheral Bays
1 slim DVD bay(s) (optional)
System Cooling
Fans
6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
2 Air Shroud(s)
Power Supply
1x 860W Redundant Platinum Level (94%) Hot-plug power supply
Dimension (WxHxL) 54.5 x 40.25 x 322 mm
AC Input 800W: 100-127Vac / 50-60Hz
860W: 200-240Vdc / 50-60Hz
860W: 200-240Vac / 50-60Hz
+12V Max: 66.6A / Min: 0A (100Vac-127Vac)
Max: 71.6A / Min: 0A (200Vdc-240Vdc)
Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
ROHS
RoHS Compliant
Environmental Spec.
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
