Hyper SuperServer SYS-121H-TNR (Complete System Only )
Hyper SuperServer SYS-121H-TNR (Complete System Only ) - Image 2
Hyper SuperServer SYS-121H-TNR (Complete System Only ) - Image 3
Hyper SuperServer SYS-121H-TNR (Complete System Only ) - Image 4
Hyper SuperServer SYS-121H-TNR (Complete System Only ) - Image 5
Hyper SuperServer SYS-121H-TNR (Complete System Only ) - Image 6
Hyper SuperServer SYS-121H-TNR (Complete System Only ) - Image 7

In Stock

Hyper SuperServer SYS-121H-TNR (Complete System Only )

Key Applications

  • Virtualization
  • Software-defined Storage
  • AI Inference and Machine Learning
  • Cloud Computing
  • Enterprise Server

Key Features

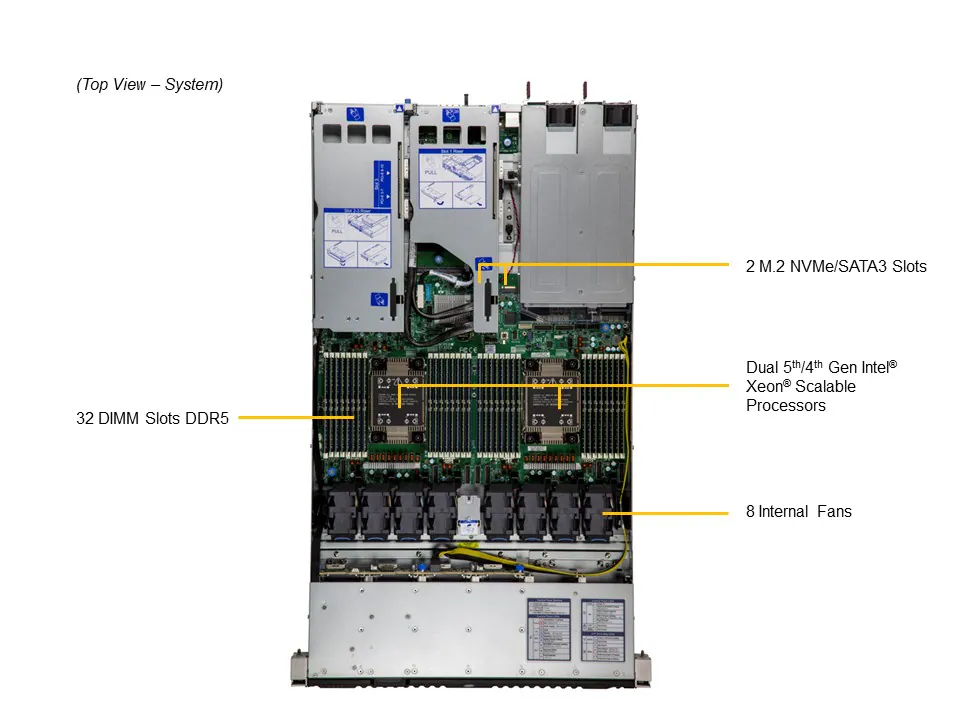

  1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
  2. 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
  3. 3 PCIe 5.0 x16 slots with support for GPU/Accelerator cards
  4. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
  5. 8x 2.5″ hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5″ hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card
  6. 8 heavy duty hot-swap fans with optimal fan speed control
Wishlist
Add to quote
Product SKUs
SuperServer SYS-121H-TNR
Motherboard
Super X13DEM
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
  • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)*
  • Supports up to 350W TDP CPUs (Liquid Cooled)​
  • *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 1 double-width or 3 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: H100, RTX A5000, RTX A4000, L40S, L4
  • View GPU Options
Certification
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
Chipset
  • Intel® C741
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB
  • 2 USB 2.0 port(s) (rear)
  • 1 USB 3.0 port(s) (front)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 64MB SPI Flash
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-HS119-R1K24P2
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29.4″ (747 mm)
Package
  • 8.1″ (H) x 23.8″ (W) x 40.6″ (D)
Weight
  • Gross Weight: 49 lbs (22.2 kg)
  • Net Weight: 34 lbs (15.4 kg)
Available Color
  • N/A
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power
  • System information
Buttons
  • Power On/Off
  • UID button
Expansion Slots

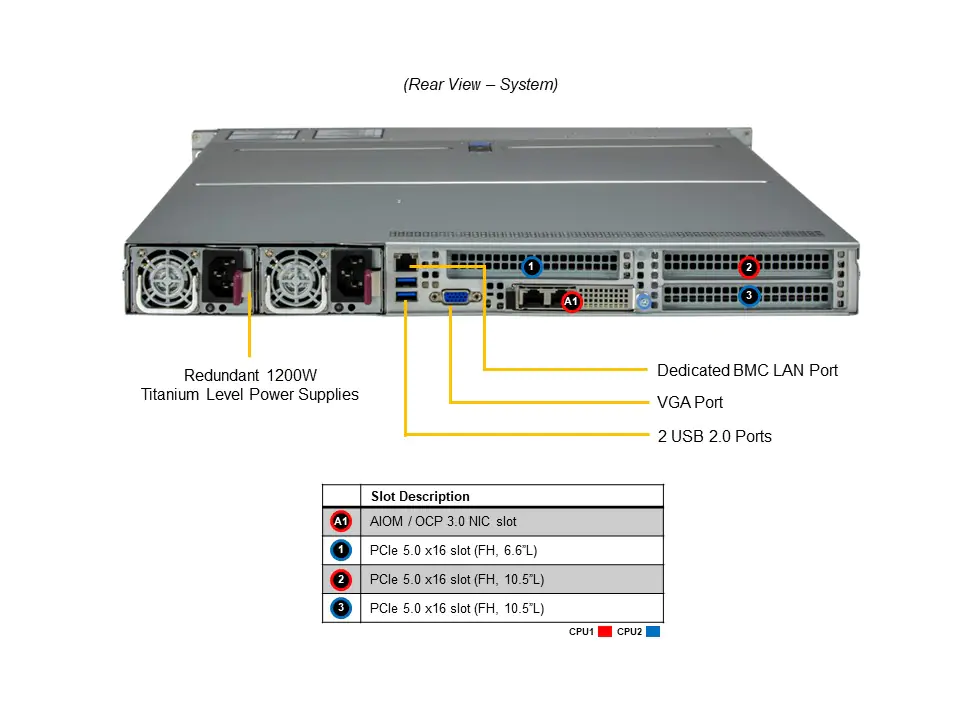

PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 5.0 x16 FHHL slot(s)
    • 2 PCIe 5.0 x16 FH/10.5″L slot(s)
    • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • View AOC Options
M.2
  • 2 M.2 NVMe/SATA slot(s) (B+M-key 2280/22110)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bay(s)
    • 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bay(s)
  • Option A: Total 12 bay(s)
    • 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bay(s)
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View Drive Options
M.2
  • 2 M.2 NVMe/SATA slot(s) (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • 8 counter-rotating 40x40x56mm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
2x 1200W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 265 mm
AC Input 800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB Max: 2.1A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Environmental / Recycling
Recycle
  • Return Server-End of Life Product

Bestsellers

Wishlist
Add to quote
This product is already in quote request list.
Quick view

Mainstream SuperServer SYS-621P-TR

Key Applications
  • Virtualization
  • Enterprise Server
  • Application and data serving
  • Compute Intensive Applications
Key Features
  1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
  2. 16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM
  3. 4 PCIe 5.0 x16 Low Profile (LP), 2 PCIe 5.0 x8 Low Profile (LP)
  4. 1200W Redundant Titanium level Power Supplies
Wishlist
Add to quote
This product is already in quote request list.
Wishlist
Add to quote
This product is already in quote request list.
Quick view

A+ Server 1114S-WTRT

Key Features• DB Processing & Storage • Data Center Applications • Firewall Applications 1.Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) 2.8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM 3.2 PCI-E 4.0 x16 (FHFL) slots, 1 PCI-E 4.0 x16 (LP) slot 4.Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management 5.10 Hot-swap 2.5" SATA3 drive bays, Optional 2 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices 6.2x 10GBase-T LAN ports via Broadcom BCM57416 Controller 7.1 VGA, 7 USB 3.0 (4 rear, 2 front, 1 Type A) 8.2 SuperDOM (Disk on Module) ports 9.500W Redundant Power Supplies Platinum Level High-efficiency (Full redundancy based on configuration and application load)
Wishlist
Add to quote
This product is already in quote request list.
Wishlist
Add to quote
This product is already in quote request list.
Quick view

SuperServer 2029P-C1RT

Key Features 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡ 2. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM†† 3. 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 slots, support 5 low-profile AOCs 4. 8x 2.5" SAS3 & 8x 2.5" SATA3 Hot-swap Drive Bays, optional DVD-ROM drive, optional support 2 NVMe/SSD/HDD 2.5" fix drives, 1 M.2 support 5. M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110 M.2 Key: M-Key 6. 2x 10GBase-T LAN ports with Intel X722 7. Integrated IPMI 2.0 with KVM and Dedicated LAN 8. 2 SuperDOM, 1 VGA, 2 COM, 2 USB 3.0, 4 USB 2.0, 1 Type A 9. 3 Heavy duty 8cm fans with PWM fan speed and cooling zone control 10. 1200W Redundant Power Supplies Titanium Level (96%)
Wishlist
Add to quote
This product is already in quote request list.
Wishlist
Add to quote
This product is already in quote request list.
Quick view

SuperServer 2029GP-TR

Key Applications - 2D/3D and CAD Applications - Big Data Analytics - Edge Computing - VDI - Cloud Computing - Virtualization  Key Features 1. Supports up to 6 GPUs 2. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡ 3. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM†† 4. 6 PCI-E 3.0 x16 slots (FHFL), 1 PCI-E 3.0 x8 (in x16) slot (LP) 5. 8 Hot-swap 2.5" SAS/SATA drive bays, 2 Hot-swap 2.5" SATA/NVMe drive bays 6. 1 SIOM for flexible Networking 7. 5x 80mm heavy duty fans with optimal fan speed control 8. 2000W (1+1) Redundant Power Supplies Platinum Level (94%)
Wishlist
Add to quote
This product is already in quote request list.
Wishlist
Add to quote
This product is already in quote request list.
Quick view

BigTwin SuperServer SYS-220BT-HNC9R (Complete System Only)

Key Applications
  • Mission Critical HPC
  • Virtualized Big Data Analytics
  • High-Density Storage RAID Array
Key Features Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  1. Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
  2. Intel® C621A
  3. 20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
    • 1 PCIe 4.0 x16 (LP) slot;
    • Tool-less support
    • Optional HW RAID Boot Controller via AOC-SMG3-2M2-B (NVMe Only)
    • Internal PCIe 3.0 for 2 x4 M.2 NVMe/SATA support onboard
  5. Network connectivity via AIOM (OCP 3.0 compliant)
  6. 6 Hot-swap 2.5" drive bays; 6 PCIe 4.0 NVMe/SAS/SATA 2.5" drives
  7. 4 cooling fans per 2U enclosure, 16.5K RPM; Shared Cooling Design
  8. 2600W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
  9. Built-in SAS3 Support via Broadcom SAS3908
Wishlist
Add to quote
This product is already in quote request list.
Wishlist
Add to quote
This product is already in quote request list.
Quick view

Twin SuperServer SYS-220TP-HTTR

Key Applications
  • High Performance Computing
  • Hyper-Converged Infrastructure
  • Big Data / Big Science
Key Features Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  1. Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
  4. 2 PCIe 4.0 x16 (LP), 1 PCIe 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm)
  5. Intel® X710 Dual port 10GBase-T LAN onboard
  6. 6x 2.5" hot-swap SATA drive bays
  7. 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)
  8. Two 2200W redundant power supplies with PMBus
    • SATA (6Gbps); 6 slots per node; RAID 0, 1, 5, 10 support.
    • ASPEED AST2600 BMC, 2 USB, VGA. RoT
Wishlist
Add to quote
This product is already in quote request list.
Wishlist
Add to quote
This product is already in quote request list.
Quick view

Add-on Card AOC-ATG-i4S / AOC-ATG-i4SM / AOC-ATG-i4SG

Key Features
  • Advanced I/O Module (AIOM) Form Factor
  • Ports: 4x SFP+
  • Speed: 10Gbps
  • Controller: Intel® XL710-BM1
Wishlist
Add to quote
This product is already in quote request list.

Related products
Wishlist
Add to quote
This product is already in quote request list.
Quick view

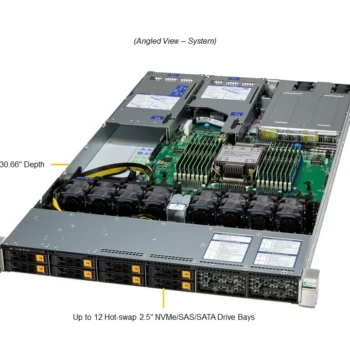

Hyper SuperServer SYS-112H-TN (Complete System Only ) New

Key Applications
  • Virtualization
  • Financial
  • Scale Out All-Flash NVMe Storage
  • Data Center Enterprise Applications
  • Cloud Computing
  • AI Inference
  • CDN/vCDN/Cloud CDN
Key Features
  1. Hyper is a flagship performance rackmount server optimized for scale-out cloud workloads.
  2. Single Intel® Xeon® 6 Processor.
  3. 16 DIMM slots supporting up to 1TB of memory (6700E series CPU).
  4. Double width add-on card support.
  5. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
  6. Breeze through high throughput workloads with PCIe 5.0 NVMe drive support.
  7. Trusted Platform Module (TPM) 2.0 onboard.
  8. Modularized and Tool-less design for easy serviceability.
Wishlist
Add to quote
This product is already in quote request list.
Wishlist
Add to quote
This product is already in quote request list.
Quick view

Mainstream SuperServer SYS-741P-TR

Key Applications
  • Virtualization
  • Enterprise Server
  • Application and data serving
  • Compute Intensive Applications
Key Features
  1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
  2. 16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM
  3. 4 PCIe 5.0 x16 full height slot(s), 2 PCIe 5.0 x8 full height slot(s)
  4. 1200W Redundant Titanium level Power Supplies
Wishlist
Add to quote
This product is already in quote request list.
Wishlist
Add to quote
This product is already in quote request list.
Quick view

Mainstream SuperServer SYS-621P-TR

Key Applications
  • Virtualization
  • Enterprise Server
  • Application and data serving
  • Compute Intensive Applications
Key Features
  1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
  2. 16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM
  3. 4 PCIe 5.0 x16 Low Profile (LP), 2 PCIe 5.0 x8 Low Profile (LP)
  4. 1200W Redundant Titanium level Power Supplies
Wishlist
Add to quote
This product is already in quote request list.
Wishlist
Add to quote
This product is already in quote request list.
Quick view

Ultra SuperServer SYS-610U-TNR (Complete System Only)

Key Applications
  • Virtualization
  • HPC
  • Cloud Computing
  • High End Enterprise Server
  • Software Defined Storage
  • Application Tier Service Provider
  • 5G/Telco
Key Features
  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
    • 2 PCIe 4.0 x16 (FH, 10.5"L)
    • 1 PCIe 4.0 x16 (LP)
    • 1 Internal PCIe 4.0 x16
  5. Flexible networking options
  6. 4x3.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  7. 8 heavy duty fans with optimal fan speed control
  8. 1200W redundant Titanium level power supplies
Wishlist
Add to quote
This product is already in quote request list.
Wishlist
Add to quote
This product is already in quote request list.
Quick view

Hyper SuperServer SYS-222H-TN (Complete System Only ) New

Key Applications
  • Virtualization
  • Software-defined Storage
  • High Performance Computing
  • Cloud Computing
  • Enterprise Server
Key Features
  1. Dual Intel® Xeon® 6 6700 series processors with E-cores
  2. 32 DIMM slots supporting up to 2TB of memory
  3. Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards
  4. Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
  5. 8x 2.5" hot-swap NVMe/SATA/SAS drive bays with optional configurations for 16x/24x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card
Wishlist
Add to quote
This product is already in quote request list.
Wishlist
Add to quote
This product is already in quote request list.
Quick view

Ultra SuperServer SYS-620U-TNR (Complete System Only)

Key Applications
  • Virtualization
  • HPC
  • Cloud Computing
  • High End Enterprise Server
  • Software Defined Storage
  • Application Tier Service Provider
  • 5G/Telco
Key Features
  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  4. Flexible networking options
  5. 12x 3.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  6. 4 heavy duty fans with optimal fan speed control
  7. 1200W redundant Titanium level power supplies
Wishlist
Add to quote
This product is already in quote request list.

Product has been added to your cart

Social Chat is free, download and try it now here!

Close
