In Stock

MicroBlade MBI-311C-1C2 (Complete System Only)

Key Applications

– Cloud Gaming
– E-commerce
– Cloud Computing
– Content Creation
– Web/Collocation Services
– Web Cache, CDN, Video Streaming
– Social Networking, Downloads
– Corporate – WINS, DNS, Print, Login

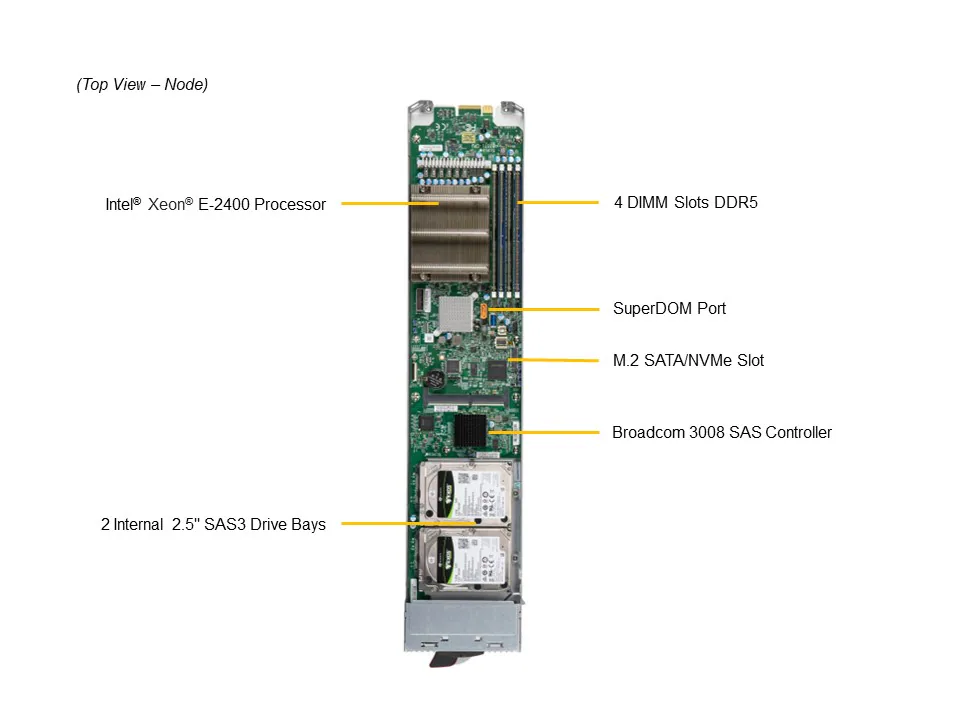

 Key Features

  •  140 UP nodes per 42U Rack
  •  20 UP nodes in 6U

1. Single socket (LGA 1700) supports Intel® Pentium®, Intel® Xeon® E-2400 Series Processor

2. Up to 128GB ECC LP UDIMM

DDR5 4400 MT/s in 4 DIMM slots

3. Up to 2x 2.5″ SAS3 (12Gbps) drives

M.2 Interface: 1 SATA3/NVMe (PCIe 4.0 from PCH)

M.2 Form Factor: 2280/22110

M.2 Key: M-Key

4. Dual 1GbE LAN ports via Intel i350

Dedicated LAN supports IPMI 2.0

5. Avago 3008 SAS3 controller

6. Aspeed AST2600

Product SKUs
MicroBlade
  • MBI-311C-1C2
Motherboard

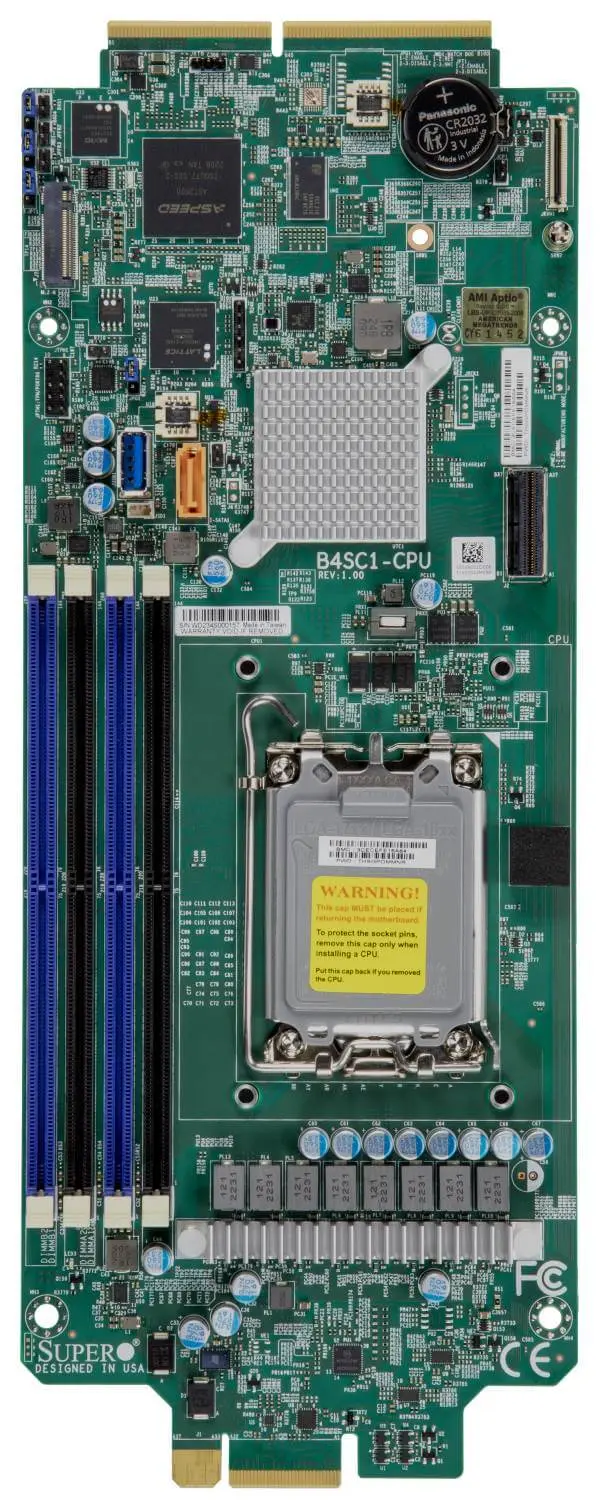

  • MBD-B4SC1-CPU
Processor
CPU
  • Single Socket (LGA 1700) supports Intel® Xeon® E-2400/Pentium® Processor
Cores
  • Up to 8 cores
System Memory
Memory Capacity
  • 4 DDR5 DIMM sockets
  • Supports up to 128GB DDR5 ECC LP UDIMM
Memory Type
  • 4400 MT/s ECC DDR5 UDIMM
DIMM Sizes
  • 32GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors(using ECC memory)
On-Board Devices
Chipset
  • Intel® C266 chipset
SAS
  • SAS3 (12Gbps) via Avago 3008
Network Controllers
  • Dual 1GbE LAN ports
IPMI
  • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
System BIOS
BIOS Type
  • 128Mb Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • SMBIOS 2.7.1



Dimensions
Height
  • 1.2″ (30.48mm)
Width
  • 4.94″ (125.48mm)
Depth
  • 23.2″ (589.28mm)
Weight
  • Gross Weight: 3.3 lbs (1.5 kg)
Available Colors
  • Silver Grey
Front Panel
LEDs
  • Power LED
  • Fault LED
  • Network Activity LED
  • UID / KVM LED
Drive Bays
Internal
  • 2x 2.5″ SAS3 (12Gbps) drives
M.2
  • M.2 Interface: 1 SATA3/NVMe (PCIe 4.0 from PCH)
  • M.2 Form Factor: 2280/22110
  • M.2 Key: M-Key
Others
  • 1x SATA DOM
Input / Output
TPM
  • 1 TPM Header
Operating Environment / Compliance
Environmental Spec.
  • Operating Temperature:10°C to 38°C (50°F to 100.4°F)
  • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:8% to 90% (non-condensing)
  • Non-operating Relative Humidity:5% to 95% (non-condensing)
Electromagnetic Compatibility (EMC)
United States / Canada
  • FCC- Emissions (US) Verification
Europe
  • EN55022 – Emissions
  • EN55024 – Immunity
  • EN61000-3-2 – Harmonics
  • EN61000-3-3 – Voltage Flicker
  • CE – EMC Directive 89/336/EEC
