CISCO2901-SEC/K9 Overview
Cisco 2901 Integrated Services Router (ISR) delivers highly secure data, voice, video, and application services for small offices. CISCO2901-SEC/K9 is almost the same as CISCO2901/K9, except that it offers Security bundle.
Table 1 shows the Quick Specs of the CISCO2901-SEC/K9.
| Product Code | CISCO2901-SEC/K9 |
| Bundle | Security Bundle w/SEC license PAK |
| Rack Units | 1U |
| Interfaces | 2 integrated 10/100/1000 Ethernet ports |
| Expansion Slot(s) | 2 onboard digital signal processor (DSP) slots
4 enhanced high-speed WAN interface card slots 1 onboard Internal Service Module for application services |
| RAM | 512 MB (installed) / 2 GB (max) |
| Flash Memory | 256 MB (installed) / 8 GB (max) |
| Dimensions | 43.9 cm x 43.8 cm x 4.5 cm |
| Package Weight | 11.48 Kg |

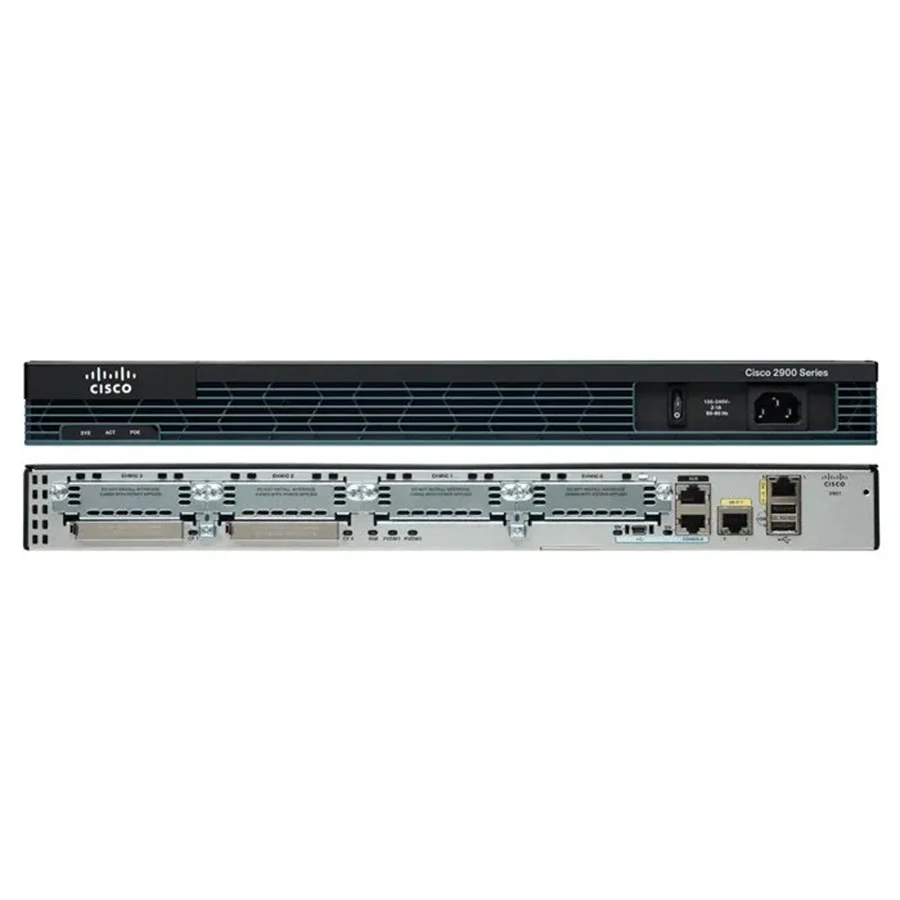

Product Details
Note:
? EHWIC slots 0, 1, 2, and 3 (0, Far right) ? CompactFlash 0 and 1
? Aux port ? USB serial port
? 10/100/1000 Ethernet port (GE0/0) ? RJ-45 serial console port
? Ground ? 10/100/1000 Ethernet ports (GE0/1)
? CompactFlash 0 and 1 ? USB0 and USB1 (1, Top)
Note:
? CompactFlash 0 and 1 (0, Right) ? EN (Enable RJ-45 console)
? ISM ? S (Speed)
? PVDM3 0 and 1 (0, Right) ? L (Link)
? EN (Enable USB console)
The Modules and Cards
Table 2 shows some recommended modules and cards for this router.
| Models | Description |
| VWIC3-2MFT-G703 | Cisco Voice/WAN Card VWIC3-2MFT-G703 |
| HWIC-2T | 2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card |
| EHWIC-1GE-SFP-CU | Cisco 1900, 2900, 3900 Router EHWIC WAN Card vb EHWIC-1GE-SFP-CU |
| EHWIC-4ESG | Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers |
| ISM-SRE-300-K9 | Internal Services Module (ISM) with Services Ready Engine |
| PVDM3-16 | 16-channel high-density voice DSP module |
| MEM-CF-256U1GB | 256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900 |
| MEM-CF-256U2GB | 256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900 |
| MEM-CF-256U512MB | 256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR |
| MEM-CF-256U4GB | 256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900 |
| MEMUSB-1024FT | 1GB USB Flash Token |
