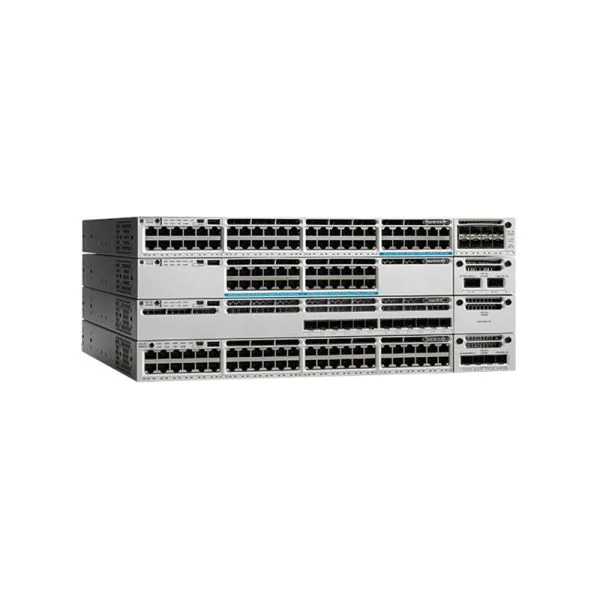

C1-WSC3850-24XUL Overview
The Cisco ONE Catalyst 3850-24XUL is a powerful networking switch designed to offer superior performance and high-level flexibility. As a part of the Cisco ONE suite, it features 24 multigigabit ports with Universal Power over Ethernet (UPoE), making it ideal for modern enterprise environments where reliable and high-speed connectivity is paramount.
Quick Spec
| Model |
C1-WSC3850-24XUL |
| Ports |
24 mGig |
| Power over Ethernet |
UPoE |
| Software |
LAN Base |
| Layer Type |
Layer 3 |
Product Features
- 24 multigigabit ports supporting UPoE
- High performance and advanced security capabilities
- Enhanced mobility with integrated wireless controller capabilities
- StackWise-480 technology
- Built-in support for full-featured IPv4/IPv6
Product Applications
- Ideal for large enterprises requiring high-speed connectivity and advanced security features
- Suitable for educational institutions looking to support wide range of devices and applications
- Perfect for environments that require high-performance network infrastructure for data-intensive applications
Supported Options
| Cisco StackPower Cable |
STACK-PWR-150CM |
| Cisco Power Supply Module |
PWR-C1-1100WAC-P |
| Cisco 10GBASE SFP+ Module |
SFP-10G-SR |
Compare to Similar Items
| Model |
Main Differences |
| Cisco Catalyst 3850-24T-S |
Does not support mGig or UPoE |
| Cisco Catalyst 9300-24T-A |
Advanced security features with Network Advantage |
| Cisco Catalyst 2960X-24PS-L |
Low PoE power with standard Gigabit ports |
C1-WSC3850-24XUL Specification
C1-WSC3850-24XUL Specifications
|
| Brand |
Cisco |
| Model |
C1-WSC3850-24XUL |
| Product Name |
Cisco ONE Catalyst 3850 24 mGig Port UPoE LAN Base |
| Port Count |
24 mGig Ports |
| Power over Ethernet |
UPoE (Universal Power over Ethernet) |
| Software |
LAN Base |
| Switching Capacity |
480 Gbps |
| Stacking Bandwidth |
480 Gbps |
| Forwarding Rate |
357.14 Mpps |
| DRAM |
8 GB |
| Flash Memory |
4 GB |
| Security |
802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard |
| VLANs |
4096 VLAN IDs |
| QoS |
Per-port QoS, 8 egress queues per port |
| Management |
Web GUI, Command-Line Interface (CLI) |
| Dimensions |
4.45 x 44.5 x 44.5 cm |
| Operating Temperature |
0??C to 45??C (32??F to 113??F) |
| Storage Temperature |
-40??C to 70??C (-40??F to 158??F) |
| Humidity |
5% to 95% (Non-condensing) |
| Regulatory Compliance |
UL/CSA 60950-1, IEC 60950-1, EN 60950-1 |
| Warranty |
Limited Lifetime Warranty |
