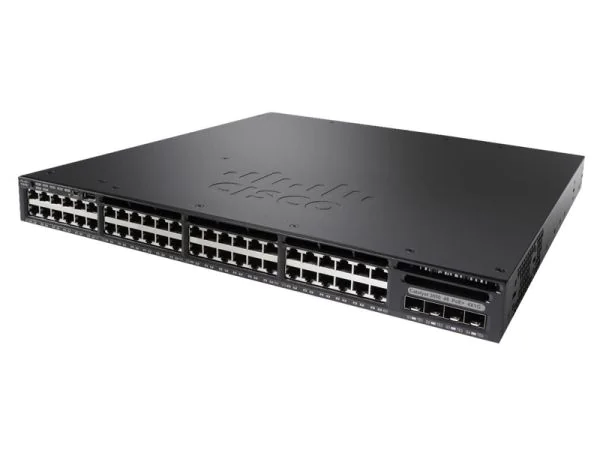

WS-C3650-48FWS-S Overview
Cisco Catalyst WS-C3650-48FWS-S is the next generation enterprise-level standalone with stackable option switch with IP Base image. WS-C3650-48FWS-S has 48 Gigabit Ethernet POE+ ports with 4 fixed 1G SFP uplink ports and provides 5 access point licenses and support up to 200 wireless connections.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | WS-C3650-48FWS-S |
| Bundle | w/5 AP licenses |
| Enclosure Type | Rack-mountable – 1U |
| Feature Set | IP Base |
| Uplink Interfaces | 4 x 1G SFP |
| Ports | 48 x 10/100/1000 (POE+) |
| Available PoE Power | 775W |
| Maximum stacking number | 9 |
| Stack bandwidth | 160 Gbps |
| Forwarding Performance | 77.37Mpps |
| Switching Capacity | 176 Gbps |
| RAM | 4 G |
| Flash Memory | 2 G |
| Dimensions | 44.5 x 48.6 x 4.4 cm |
Product Details
The Modules, Licenses and Accessories
Table 2 shows some recommended modules, licenses and accessories of this switch.
| Models | Description |
| C3650-STACK-KIT= | Cisco Catalyst 3650 Stack Module Spare |
| L-C3650-48-S-E= | C3650-48 IP Base to IP Services Electronic RTU License |
| PWR-C2-1025WAC= | 1025W AC Config 2 Secondary Power Supply |
| PWR-C2-640WDC= | 640W DC Config 2 Secondary Power Supply |
| CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
| CAB-CONSOLE-USB | Console Cable 6 ft with USB Type A and mini-B |
Compare to Similar Items
Table 3 shows the comparison between WS-C3650-48FWS-S and WS-C3650-48FS-S.
| Models | WS-C3650-48FWS-S | WS-C3650-48FS-S |
| Feature Set | IP Base | IP Base |
| Uplink Interfaces | 4 x 1G SFP uplinks | 4 x 1G SFP uplinks |
| Ports | 48 x 10/100/1000 POE+ Ethernet ports | 48 x 10/100/1000 POE+ Ethernet ports |
| Available PoE Power | 775W | 775W |
| StackWise-160 | Optional | Optional |
| Bundle | 5 Access Point Licenses | None |
