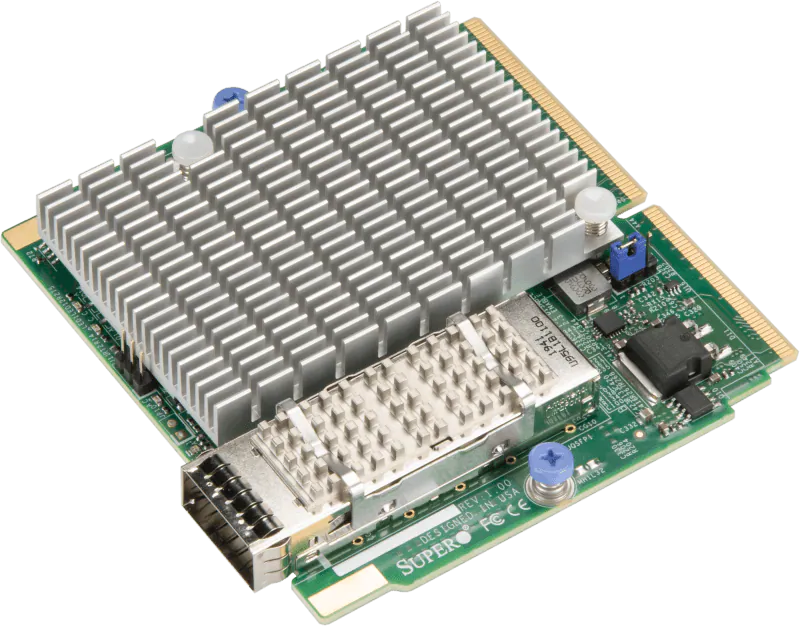

Add-on Card AOC-MIBE6-m1C / AOC-MIBE6-m1CM

In Stock

Add-on Card AOC-MIBE6-m1C / AOC-MIBE6-m1CM

Key Features

  • Super I/O Module (SIOM) Form Factor
  • Port: 1 QSFP28 port
  • Speed: 100Gbps InfiniBand EDR/HDR-100 or 100Gbps Ethernet
  • Controller: Mellanox® ConnectX-6 VPI
Wishlist
Add to quote
Add-on Card
The Ultimate InfiniBand Adapter in Supermicro Super I/O Module (SIOM) Form FactorThe AOC-MIBE6-m1C(M) is a powerful and versatile InfiniBand and Ethernet controller in a flexible small form-factor SIOM. Featuring Mellanox® ConnectX-6 controller, it can provide up to 100Gbps InfiniBand EDR/HDR-100 or 100Gbps Ethernet connectivities optimized for high-performance computing networks and are ideal for demanding Enterprise and HPC applications.
To order, contact your distributor. This product is only available through Supermicro.
Key Features
  • Super I/O Module (SIOM) Form Factor
  • Mellanox® ConnectX-6 Controller
  • Up to 100Gbps InfiniBand EDR/HDR-100 or 100Gbps Ethernet
  • NC-SI for Remote Management
  • VXLAN and NVGRE
  • Asset Management Features with thermal sensor
  • PCI-E Gen4 and PCI-E Gen3 support
Compliance
RoHS
  • RoHS Compliant 6/6



Supported Platforms
Motherboards Supermicro® motherboards with Super I/O Module slot
Servers Supermicro® server systems with Super I/O Module slot (See SIOM Compatibility Matrix online)



Downloads
User’s Guide [ Download ]
Datasheet [ Download ]
Driver Choose the latest CDR-NIC folder, and then click on Mellanox folder for driver [ Download ]
Driver CD Click on the latest CDR-NIC ISO file to download [ Download ]



Specifications
  • General
    • Super I/O Module (SIOM) Form Factor
    • Mellanox® ConnectX-6 Controller
    • Single QSFP28 port with speed up to 100Gbps
    • PCI-E 4.0 compliant
  • Networking Features
    • Jumbo frame support (9.6KB)
    • IEEE 802.3ad, 802.1AX Link Aggregation
    • VMware NetQueue support
    • IEEE 802.1Q, 802.1P VLAN tags and priority
    • IEEE 802.3az Energy Efficient Ethernet
    • IEEE 802.3ap based autonegotiation and KR startup
    • IEEE 802.1Qau (QCN) – Congestion Notification
  • Offload Features
    • RDMA over Converged Ethernet (RoCE)
    • TCP/UDP/IP stateless offload
    • Large Receive Offload (LSO)
    • Receive Side Scaling (RSS)
    • Transmit Side Scaling (TSS)
    • Data Plane Development Kit (DPDK) for kernel bypass application
    • Open VSwitch (OVS) offload using ASAP2
    • Flexible match-action flow tables Tunneling encapsulation / de-capsulation
    • Intelligent interrupt coalescence
    • Header rewrite supporting hardware offload of NAT router
  • Management Features
    • Jumper for standby power (default disabled)
    • Network Controller Sideband Interface (NC-SI)
      • NC-SI is not supported during standby with default setting
    • Preboot eXecution Environment (PXE) support
    • iSCSI remote boot support
    • Asset Management with thermal sensor
  • OS Support
    • Windows® Server
    • Linux RHEL
    • Linux SLES
    • Linux Ubuntu
    • Linux CentOS
    • FreeBSD
    • VMware
    • OpenFabrics Enterprise Distribution (OFED)
    • OpenFabrics Windows Distribution (WinOF-2)
  • Power Consumption
    • Maximum 20W
  • Operating Conditions
    • Operating temperature: 0°C to 55°C (32°F to 131°F)
    • Storage temperature: -40°C to 65°C (-40°F to 149°F)
    • Storage humidity: 90% non-condensing relative humidity at 35°C
  • Physical Dimensions
    • Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)

Please note that this product is sold only as part of an integrated solution with Supermicro server systems.
