BigTwin SuperServer SYS-220BT-HNTR (Complete System Only)

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
Intel® C621A
20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
- 2 PCIe 4.0 x16 (LP) slot;
- Tool-less support
- Optional HW RAID Boot Controller via AOC-SMG3-2M2-B (NVMe Only)
- Internal PCIe 3.0 for 2 x4 M.2 NVMe/SATA support onboard
Network connectivity via AIOM (OCP 3.0 compliant)
6 Hot-swap 2.5″ drive bays; 6 PCIe 4.0 NVMe/SATA 2.5″ drives
4 cooling fans per 2U enclosure, 16.5K RPM; Shared Cooling Design
2600W Redundant Power Supplies Titanium Level (96%+); Shared Power Design

Product SKUs
SuperServer SYS-220BT-HNTR

Motherboard
Super X12DPT-B6

Processor (per Node)
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 54MB Cache per CPU
Note	Supports up to 205W TDP CPUs (Air Cooled)

GPU (per Node)
Max GPU Count	Up to 2 onboard GPU(s)
Supported GPU	NVIDIA PCIe: A2 View GPU Options
CPU-GPU Interconnect	PCIe 4.0 x16 CPU-to-GPU Interconnect

System Memory (per Node)
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM Supports Intel® Optane™ persistent memory 200 series View Memory Options

On-Board Devices (per Node)
Chipset	Intel® C621A
Network Connectivity	Via AIOM View AIOM Options View AOC Options

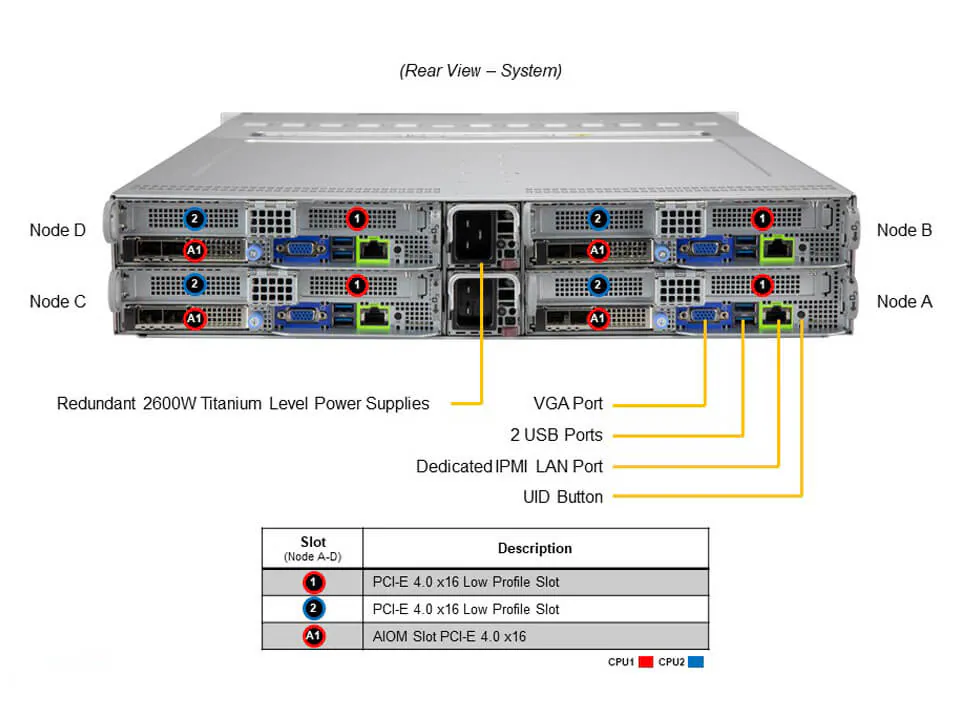

Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB	2 USB 3.0 Type-A port(s) (Rear)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB Flash ROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 7+1 Phase-switching voltage regulator

Dimensions and Weight
Height	3.47″ (88 mm)
Width	17.68″ (449 mm)
Depth	28.75″ (730 mm)
Package	9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight	Gross Weight: 96.6 lbs (43.8 kg) Net Weight: 66.1 lbs (30 kg)
Available Color	Black front & silver body

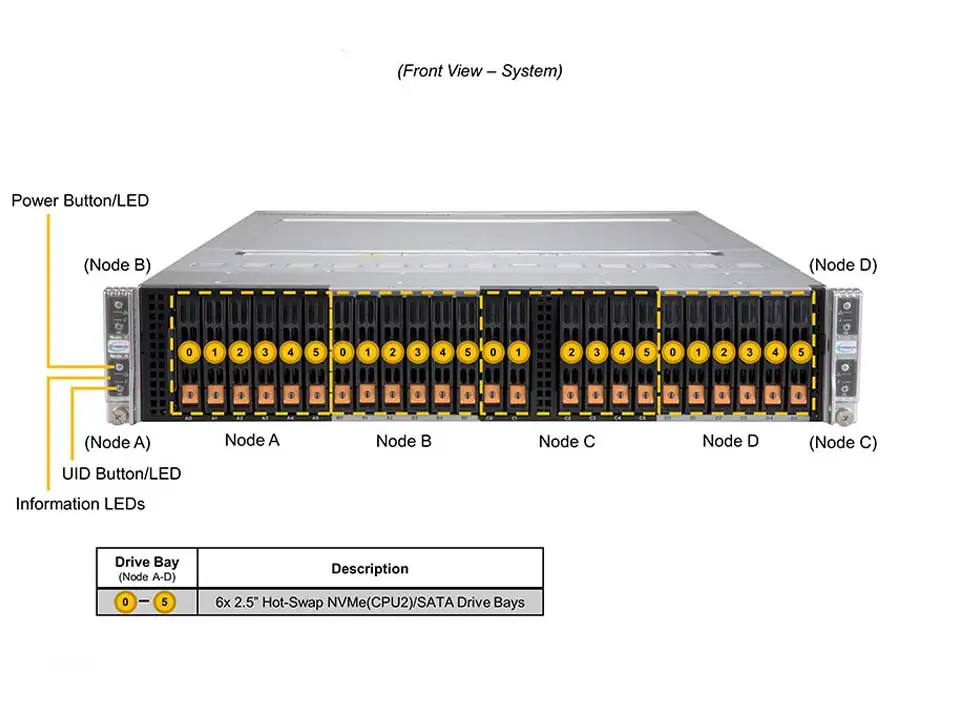

Front Panel
LED	HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Buttons	Power On/Off button UID button

Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default 2 PCIe 4.0 x16 LP slot(s) View AOC Options

Drive Bays / Storage (per Node)
Drive Bays Configuration	Default: Total 6 bay(s) 6 front hot-swap 2.5″ PCIe 4.0 NVMe/SATA drive bay(s) View Drive Options
M.2	2 M.2 PCIe 3.0 x4 NVMe/SATA slot(s) (M-key 2280(default); VROC required for RAID) View M.2 Options

System Cooling
Fans	4x 16.5K RPM Heavy Duty 8cm Fan(s)

Power Supply

1x 2600W Redundant Titanium Level (96%) power supply

Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
