BigTwin SuperServer SYS-620BT-DNTR (Complete System Only)

Key Applications

Hyperconverged Infrastructure
Scale-Out Object Storage
Back-up & Recovery

Key Features

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
Intel® C621A
20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)

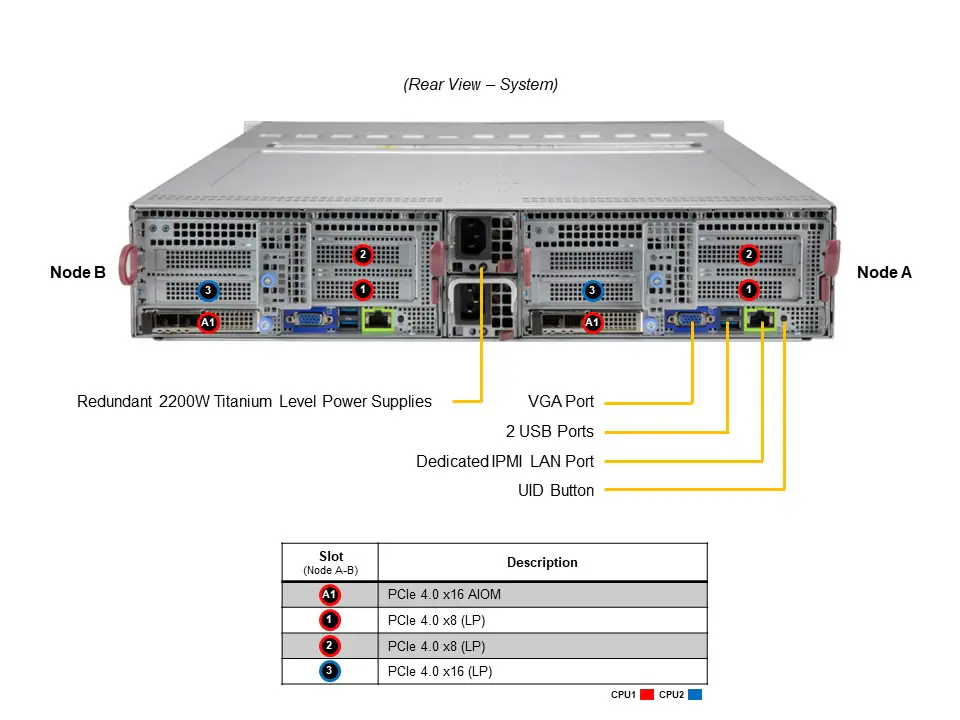

- Optional 2U Riser for Slot 1, CPU1 x16 PCIe 4.0 (RSC-P2R-6G4)
- 1 PCIe 4.0 x16 (LP) slot;
- 2 PCIe 4.0 x8 (LP) slot;
- Tool-less support
- Optional HW RAID Boot Controller via AOC-SMG3-2M2-B (NVMe Only)
- Internal PCIe 3.0 for 2 x4 M.2 NVMe/SATA support onboard
Network connectivity via AIOM (OCP 3.0 compliant)
6 Hot-swap 3.5″ drive bays; 6 PCIe 4.0 NVMe/SATA 3.5″ drives
2 cooling fans per node, 14.9K RPM
2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design

Description

Product SKUs
SuperServer SYS-620BT-DNTR

Motherboard
Super X12DPT-B6

Processor (per Node)
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 54MB Cache per CPU
Note	Supports up to 250W TDP CPUs (Air Cooled)

GPU (per Node)
Max GPU Count	Up to 1 double-width GPU(s)

System Memory (per Node)
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM Supports Intel® Optane™ persistent memory 200 series View Memory Options

On-Board Devices (per Node)
Chipset	Intel® C621A
Network Connectivity	Via AIOM View AIOM Options View AOC Options

Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB	2 USB 3.0 Type-A port(s) (Rear)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB Flash ROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 7+1 Phase-switching voltage regulator

Chassis
Form Factor	2U Rackmount
Model	CSE-827BD-000NP

Dimensions and Weight
Height	3.47″ (88 mm)
Width	17.68″ (449 mm)
Depth	30.5″ (774 mm)
Package	9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight	Gross Weight: 80.7 lbs (36.6 kg) Net Weight: 55.1 lbs (25 kg)
Available Color	Black

Front Panel
LED	HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Buttons	Power On/Off button UID button

Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default 2 PCIe 4.0 x8 LP slot(s) 1 PCIe 4.0 x16 LP slot(s) View AOC Options

Drive Bays / Storage (per Node)
Drive Bays Configuration	Default: Total 6 bay(s) 6 front hot-swap 3.5″ PCIe 4.0 NVMe/SATA drive bay(s) View Drive Options
M.2	2 M.2 PCIe 3.0 x4 NVMe/SATA slot(s) (M-key 2280(default); VROC required for RAID) View M.2 Options

System Cooling
Fans	4x 14.9K RPM Heavy Duty 8cm Fan(s)

Power Supply

1x 2200W Redundant Titanium Level (96%) power supply

Dimension (WxHxL)	45 x 40 x 480 mm
AC Input	1200W: 100-127Vac / 50-60Hz 2090W: 180-220Vac / 50-60Hz (for UL/cUL safety rating only) 1800W: 200-220Vac / 50-60Hz (for TUV/CB/others safety rating only) 1980W: 220-230Vac / 50-60Hz (for TUV/CB/others safety rating only) 2200W: 220-240Vac / 50-60Hz (for UL/cUL safety rating only) 2090W: 230-240Vdc / 50-60Hz (for CQC safety rating only) 2090W: 230-240Vac / 50-60Hz (for TUV/CB/others safety rating only)
+12V	Max: 100A / Min: 0A (100Vac-127Vac) (for TUV/CB/others safety rating only) Max: 174.17A / Min: 0A (180Vac-220Vac) (for UL/cUL safety rating only) Max: 150A / Min: 0A (200Vac-220Vac) (for TUV/CB/others safety rating only) Max: 165A / Min: 0A (220Vac-230Vac) (for TUV/CB/others safety rating only) Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL safety rating only) Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CQC safety rating only) Max: 174.17A / Min: 0A (230Vac-240Vac) (for TUV/CB/others safety rating only)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (connector)

Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
