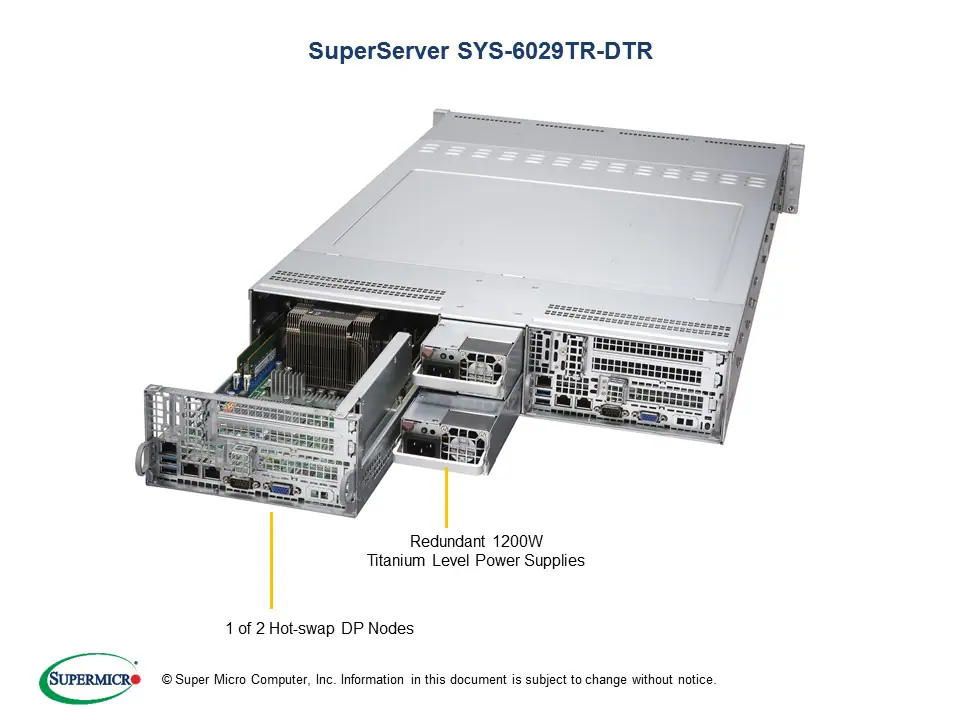

SuperServer 6029TR-DTR

Key Applications / Features

– HPC
– Virtualization
– Data Center
– Web Server

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

1. Dual Socket P (LGA 3647) support
2nd Gen Intel® Xeon® Scalable
processors (Cascade Lake/Skylake)^‡

2. 8 DIMMs; up to 2TB 3DS ECC
DDR4-2933MHz^† RDIMM/LRDIMM

3. 2 PCI-E 3.0 x8 (FH/HL) or 1 PCI-E 3.0
x8 (FH/HL) + 1 PCI-E 3.0 x4 (FH/HL)
+ 1 PCI-E 3.0 x 4 (LP) (8/8/0 or 8/4/4)

4. Dedicated IPMI 2.0 LAN

5. 6 Hot-swap 3.5″ SATA3 drive bays

6. 2 SATA DOM + 1 SATA/NVMe
M.2 (22110/2280)

7. Up to 1200W Redundant Power Supplies
Titanium Level (96%)

Processor (per Node)

CPU	Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors^‡, Dual UPI up to 10.4GT/s Support CPU TDP 70-140W
Cores	Up to 22 Cores
Note	^‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory (per Node)

Memory Capacity	8 DIMM slots Up to 2TB 3DS ECC DDR4-2933MHz^† RDIMM/LRDIMM
Memory Type	2933^†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note	^† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

On-Board Devices (per Node)

Chipset	Intel® C621 chipset
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10 support
Network Controllers	Intel® C621 chipset
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC

Input / Output (per Node)

SATA	6 SATA3 (6Gbps) ports
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports total (rear)
VGA	1 VGA port
Serial Port / Header	1 COM Port (1 rear)
Others	TPM 2.0 Header

Management

Software	Intel® Node Manager IPMI 2.0 KVM with dedicated LAN NMI SSM, SPM, SUM SuperDoctor® 5 Watchdog

PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Dimensions and Weight

Width	17.25″ (438mm)
Height	3.47″ (88mm)
Depth	28.5″ (724mm)
Weight	Gross Weight: 61.1 lbs (27.71kg) Net Weight: 42.1 lbs (19.1kg)
Available Colors	Black

Front Panel

Buttons	Power On/Off button UID button
LEDs	Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED

Expansion Slots (per Node)

PCI-Express	2 PCI-E 3.0 x8 (FH/HL) or 1 PCI-E 3.0 x8 (FH/HL) + 1 PCI-E 3.0 x4 (FH/HL) + 1 PCI-E 3.0 x 4 (LP) (8/8/0 or 8/4/4)

Drive Bays / Storage (per Node)

Hot-swap	6 Hot-swap 3.5″ SATA3 HDD trays
Others	2 SATA DOM 1 PCI-E 3.0 x4 NVMe or 1 SATA M.2 (22110/2280) support via BPN-ADP-6SATA3M2-1UL * M.2 and SuperDOM are for OS boot

System Cooling

Fans	4x 8cm heavy duty PWM fans with optimal fan speed controlled

Power Supply (76mm Width)

1200W Redundant Power Supplies with PMBus
Total Output Power	1000W/1200W
Dimension (W x H x L)	76 x 40 x 336 mm
Input	100-127Vac / 15-12A / 50-60Hz 200-240Vac / 8.5-7A / 50-60Hz 200-240Vdc / 8.5-7A (for CCC only)
+12V	Max: 83A / Min: 0A (100-127Vac) Max: 100A / Min: 0A (200-240Vac) Max: 100A / Min: 0A (200-240Vdc)
+5Vsb	Max: 4A / Min: 0A
Output Type	19 Pairs Gold Finger Connector
Certification	Titanium Level [ Test Report ]

Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
