A+ Server 4124GQ-TNMI (Complete System Only)

Key Applications

– High Performance Computing
– AI / Deep Learning

Key Features

1.Supports AMD Instinct™ MI200 Series Accelerators with AMD Infinity™ Fabric™ GPU-GPU Interconnect, 1:1 GPU-to-NIC ratio

2.Supports MI250 OAM Accelerator with 128GB (HBM2e) and Infinity Interconnect

3.Dual AMD EPYC™ 7003 Series Processors

4.8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs

5.8 PCI-E 4.0 x16 via PLX
2 PCI-E 4.0 x16 LP via CPUs (for 5U SKU)

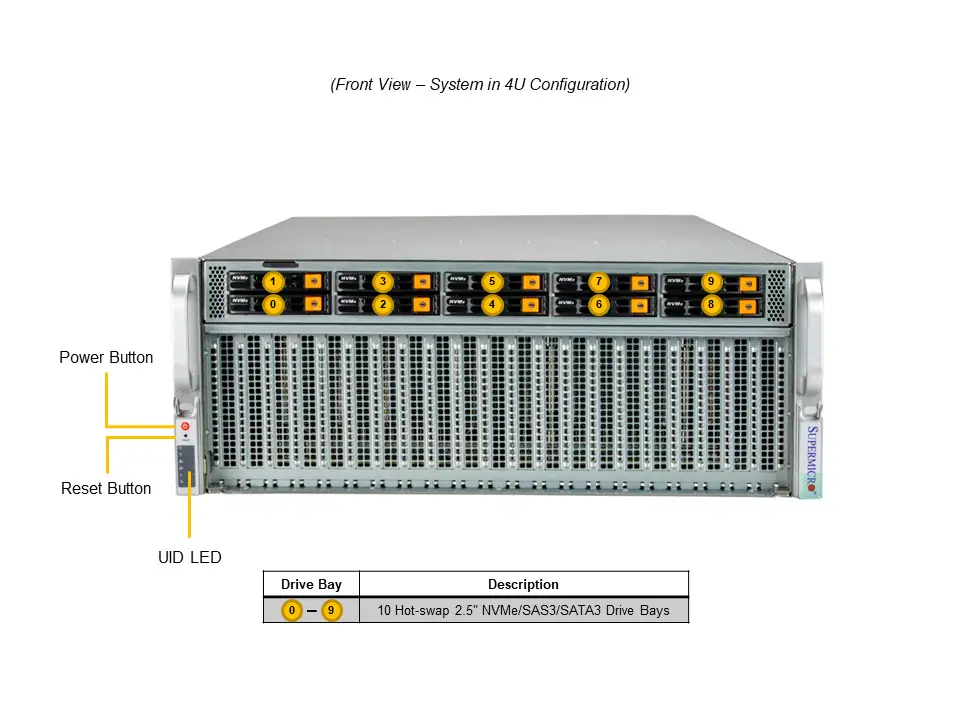

6.10 hot-swap 2.5″ U.2 NVMe/SATA/SAS hybrid drive bays

7.1 dedicated IPMI LAN Port

8.5 hot-swap heavy-duty cooling fans

Processor

CPU	Dual AMD EPYC™ 7003 Series Processors Socket SP3 Supports CPU TDP up to 280W*
Cores	Up to 128 Cores (64 cores, 128 threads per CPU)
Note	* Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization

GPU

Supported GPUs	AMD Instinct™ MI250 OAM Accelerator
CPU-GPU Interconnect	PCI-E 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	AMD Infinity Fabric™

System Memory

Memory Capacity	32 DIMM slots Up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM
Memory Type	3200MHz ECC DDR4 RDIMM/LRDIMM

On-Board Devices

Chipset	System on Chip (SoC)
SATA	SATA3 (6Gbps)
Network Controllers	Provided via IO Board
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2600 BMC

Input / Output

SATA	12 SATA3 (6Gbps) ports
NVMe	10 NVMe
LAN	Via IO Board 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.1 Gen1 ports (front)
Video	1 VGA Connector (front)
COM Port	1 COM port (header)

Management

Software	IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watchdog

PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Dimensions

Height	6.91″ (175.6mm)
Width	17.67″ (449mm)
Depth	32.79″ (833mm)
Package	14.57″ (370mm) H x 27.55″ (700mm) W x 49.60″ (1260mm) D
Weight	Net Weight: 166.0 lbs (75.3 kg) Gross Weight: 225.0 lbs (102.1 kg)

Drive Bays / Storage

Hot-swap	10 hot-swap 2.5″ U.2 NVMe/SATA/SAS hybrid drive bays

Expansion Slots

PCI-Express	8 PCI-E 4.0 x16 via PLX 2 PCI-E 4.0 x16 LP via CPUs (for 5U SKU)
Note	*8 PCI-E 4.0 slots in 4U. 2 additional PCI-E 4.0 slots in 5U with 1U height module kit supporting 2 AIOM cards or 2 PCI-E cards.

System Cooling

Fans	5 x hot-swap 11.5K RPM heavy duty fans

Power Supply
4x 3000W Redundant Titanium Level Power Supplies
Dimension (W x H x L)	106.5 x 82.4 x 203.5 mm
Certification	Titanium Level

Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
