Availability: In Stock

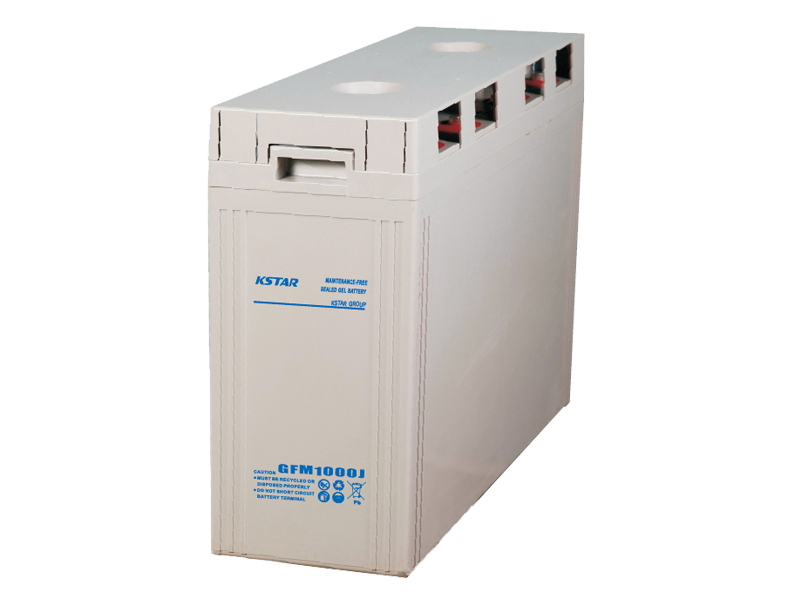

Gel Series (38-2000Ah)

KSTAR valve regulated lead acid battery can prevent air from being absorbed into it, and at the same time it also can protect the battery from damage caused by gas emitting in the period of recharging. There is no emission of acid mist and electrolyte when the sealed battery is in floating condition. Meanwhile, the patented battery tray can match with the battery and it can protect the battery from the harm of electrolyte leakage.

Add to quote

Description

General Features

● Capacity: 38-2000Ah

● Features: Gel series, design lifetime is up to 15 years for 2V battery, 10 years for 12V battery

● Application: UPS/Communication/ Energy Storage (Equipped with patent anti-leakage safety tray)

Technical Specification

TYPE	Nominal Voltage（V）	Rated Capacity（Ah)			Dimensions（mm)				Weight Appox （kg）	Terminal type
		10HR	5HR	1HR	Length	Width	Height	Total Height
		1.8V/C	1.75V/C	1.75V/C	Length	Width	Height	Total Height
6-FM-38J	12	34.2	30.4	22.8	198	166	170	170	12	M1
6-FM-65J	12	61	52	39	350	167	177	177	20.3	M2
6-FM-100J	12	92	80	60	406	173	212	219	33	M3
6-FM-150J	12	138	120	90	532	207	216	221	48.6	M5
6-FM-200J	12	184	160	120	523	240	225	230	60.5	M3
GFM200J	12	200	180	120	172	111	329	365	13.3	M3
GFM300J	12	300	270	180	171	151	330	366	18.3	M3
GFM400J	12	400	360	240	210	171	329	363	25.4	M3
GFM500J	12	500	450	300	241	172	331	366	29.5	M3
GFM600J	12	600	540	360	301	175	331	366	35.6	M3
GFM800J	12	800	720	480	410	175	330	365	50.3	M3
GFM1000J	12	1000	900	600	475	175	328	365	59	M3
GFM2000J	12	2000	1800	1200	491	351	343	383	124.5	M3
